Description
6.5HP HONDA GX200 ENGINE
Durable and tough, this compactor is built with a robust roll cage and larger vibration isolation mounts to protect your Honda engine from the harshest jobsite conditions - making it perfect for professionals, contractors and do-it-yourselfers alike.
ACHIEVE 100% COMPACTION
Use on for cohesive soils such as subbase, clay silt, clay, or mixed soils - for projects involving landscapes, hardscapes, road repair, and more.
COMPACTION OF 6,100 LBS/FT
Achieving a 100% Compaction Rating on cohesive and granular soils, up to 20 inches, this plate compactor is perfect for professional applications requiring nuclear density testing and field compaction tests.
HYDRAULIC STEERLING
With hydraulic handles, maneuver cramped areas in forward or reverse - delivering power and precision!
28" x 17" STEEL BASE PLATE
Designed to maneuver narrow, cramped spaces at 65 ft/min - this plate compactor's steel plate with beveled, seamed edge is great for markless compaction - a contractor's first choice for sidewalks, driveways, and repair work.
STURDY CRATE
This is an oversized item which requires shipment on a freight truck. Once the the item reaches the carrier's destination terminal, the trucking company will call you to schedule a delivery.
Description

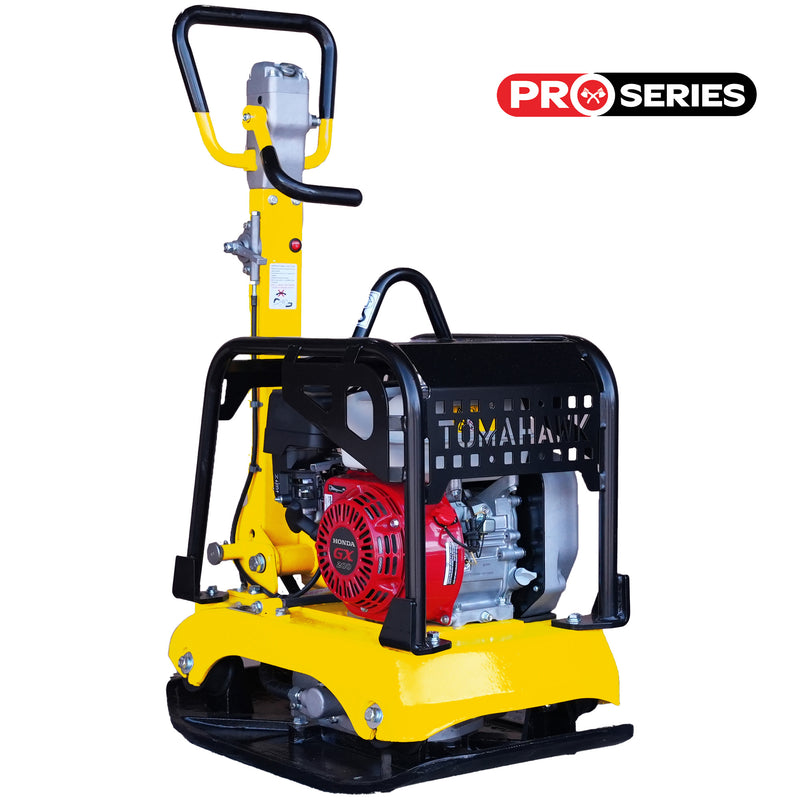

Take control of your compaction tasks with Tomahawk Reverse Plate Compactors. Engineered for power and reliability, this compactor is perfect for demanding construction projects, including foundations, roadwork, and landscaping. Its hydraulic drive allows for smooth forward and reverse operation, ensuring effortless maneuverability even in confined spaces. Built to endure the harshest conditions, the TPC175H features a cast aluminum belt guard to protect engine components, a durable lifting hook for easy transport, and a rugged frame designed to withstand heavy use. The Honda GX200 engine provides consistent, reliable power, while the optional wheel kit adds convenience for transportation across job sites.
Features
- Hydraulic Reverse Drive: Full-speed forward and reverse operation for exceptional control and maneuverability.
- Honda GX200 Engine: Reliable 6.5 HP engine delivers consistent performance for professional-grade compaction.
- High Compaction Force: Generates 6,100 lbs/ft² (27 kN) of compaction force for optimal soil and material density.
- Durable Construction: Rugged frame and cast aluminum housing ensure longevity, even in the harshest job site conditions.
- Protective Features: Cast aluminum belt guard keeps debris out of engine components, extending machine life.
- Optional Wheel Kit: Simplifies transportation for enhanced convenience.
- Travel Speed: Moves at up to 65 feet per minute, making quick work of large areas.
-
Ergonomic Design: Easy to operate, reducing fatigue during extended use.
Specifications
- Model: TPC175H
- Engine: Honda GX200 (6.5 HP)
- Compaction Force: 6,100 lbs/ft² (27 kN / 2750 kgf)
- Plate Size: 17” x 28” (43.2 cm x 71.1 cm)
- Travel Speed: 65 ft/min (19.8 m/min)
- Vibration Frequency: 90 Hz
- Engine Oil: 10W-30
- Oil Capacity: 0.63 quarts (0.6 liters)
- Weight: 363 lbs (165 kg)
-
Optional Features: Wheel kit for transportation
Package Includes
- TPC175H Plate Compactor
Compatible Belts
Gates Model XPA900
Applications
- Retaining Walls
- Footings and Foundation Projects
- Landscapes and Hardscapes
- Patchwork on Asphalt
- Pipeline Applications
- Road Repair and Trenchwork
- Backfill Pools, Parks, Cemeteries, and Golf Courses
- Cohesive Soils and Granular Soils
- Sticky Soils - such as clay or silt
- Gravel, sand, or mixed soils
- Base, Subbase, Subgrade, Subsoil
What Compactor Do I Need?
A compactor is an essential tool for preparing a solid base for structures such as patios, retaining walls, concrete slabs, and more. Tamping rammers and compactors are used to increase the density of soil by reducing air voids, which help to improve soil stability, support structures, and prevent settling. With so many options on the market, choosing the right plate compactor can be a daunting task.
Small Jobs
If you are installing artificial turf, building dirt pathways, or need to improve soil stability - but do not need to adhere to a minimum compaction rating you can use a compactor in the 110 lbs (50 kilo) range. These are great for anyone looking to get a job done by themselves with little headache.
Medium Jobs
If your project involves building a retaining wall, patio, driveway, sidewalk, or concrete slab you will need a bit more muscle. Rammers and compactors in the 130-200 lbs (60-90 kilo) range that can achieve a compaction force above 3,000 lbs²/ft are best. You will achieve 98-100% compaction ratings needed for proper compaction to prevent soil settling and foundation damage.
Large Jobs
Equipment needed for large compaction projects should also be able to achieve a minimum compaction force of 3,000 lbs²/ft to reach 98-100% compaction ratings needed for proper compaction. Where this equipment differs from medium range equipment is it's efficiency. Large jobs are typically performed by professional contractors where speed and jobsite efficiency are critical to their success. Compactors that help jobsite efficiency may feature reverse control, hydraulic drive, and the ability to compact asphalt. If you are not too worried about the time it takes to complete a project, you can save a few bucks and invest in equipment in the medium range.
Renting vs. Buying
Buy
Investing in your own plate compactor is ideal for professionals who need reliable, on-demand access to equipment. Ownership means no rental wait times, lower long-term costs, and the freedom to choose the right model for your jobs. With proper care, your compactor can serve you for years—paying for itself after just a few projects. It’s the smart choice for contractors, landscapers, and construction crews who compact frequently.
Rent
Renting is best for one-off or infrequent projects where the upfront cost of buying isn’t justified. It offers flexibility and no maintenance responsibilities, but can get expensive over time. If you’re using a compactor more than a few times a year, buying will quickly become the more cost-effective option.
Buy Local
To find a local Tomahawk Power Distributor, please refer to our Buy Local page to locate your regional manager that can refer you to the closest distributer.
How Does this Ship?
⚠ This is an oversized item which requires shipment on a freight truck. Ship this item to a business address to shave 1-2 days off the transit time!
HOW DOES THIS SHIP?
B
Blogs
Buying vs. Renting a Plate Compactor: Which Is Right for You?
Info and Guides
QUESTIONS & ANSWERS
Ask a Question-
What warranty is included?
The compactor comes with a 1-year manufacturer’s warranty, and the Honda GX200 engine includes a 3-year commercial warranty, providing excellent long-term coverage and support.
-
Is the unit easy to transport?
Yes! It includes a lifting hook making it simple to load and unload between jobs. We also offer optional wheel kit accessories to make transport even easier.
-
What does "reverse hydraulic" mean in this compactor?
The machine features hydraulic directional controls that allow for both forward and reverse movement, giving the operator more control and flexibility, especially in tight areas.
