PEAK PERFORMANCE WITH POWER IN EVERY INCH.
Great condition with less than 4 running hours. May have minor blemishes.

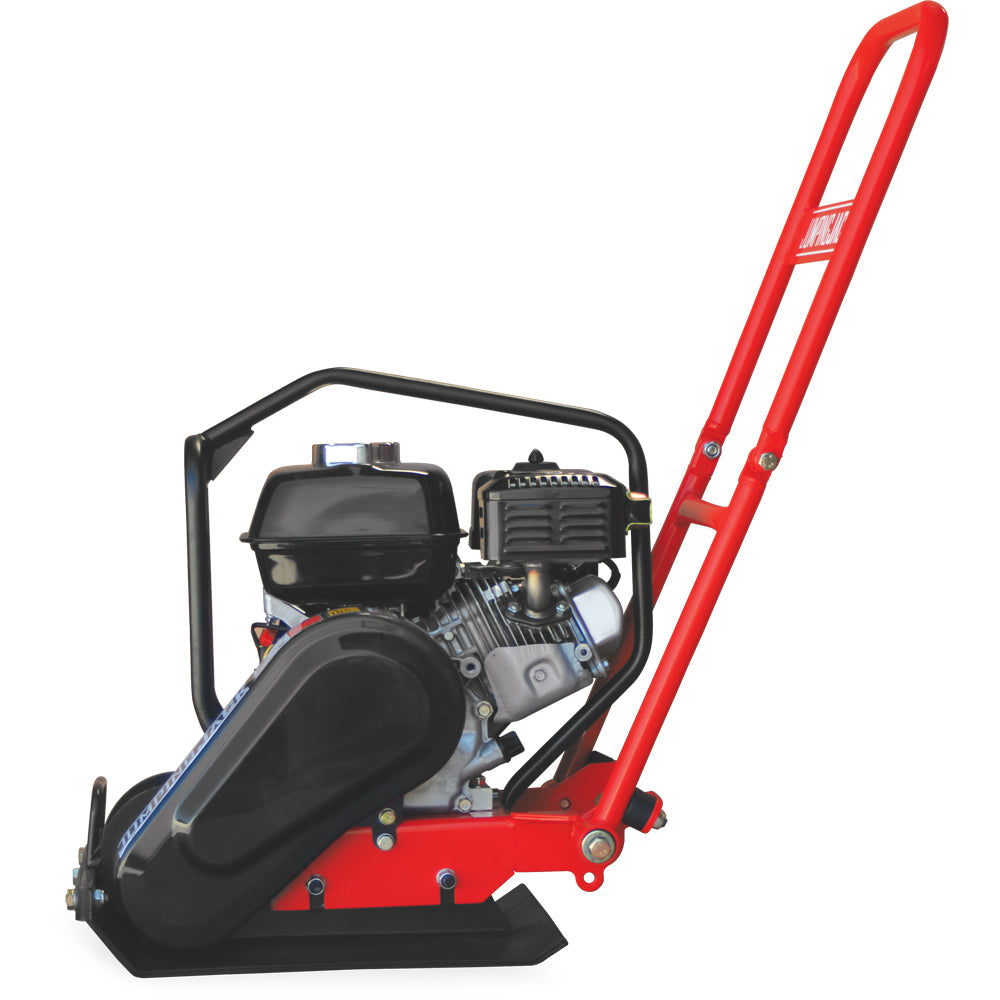

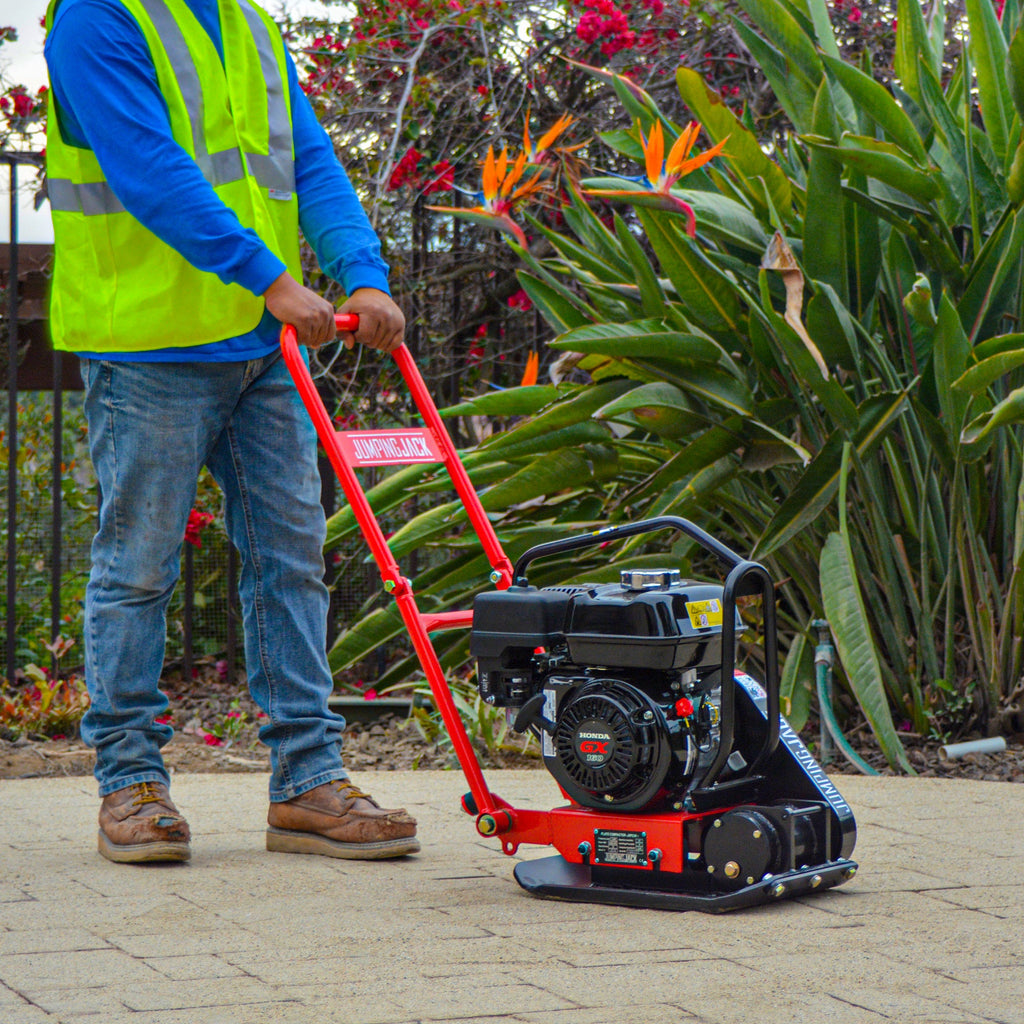

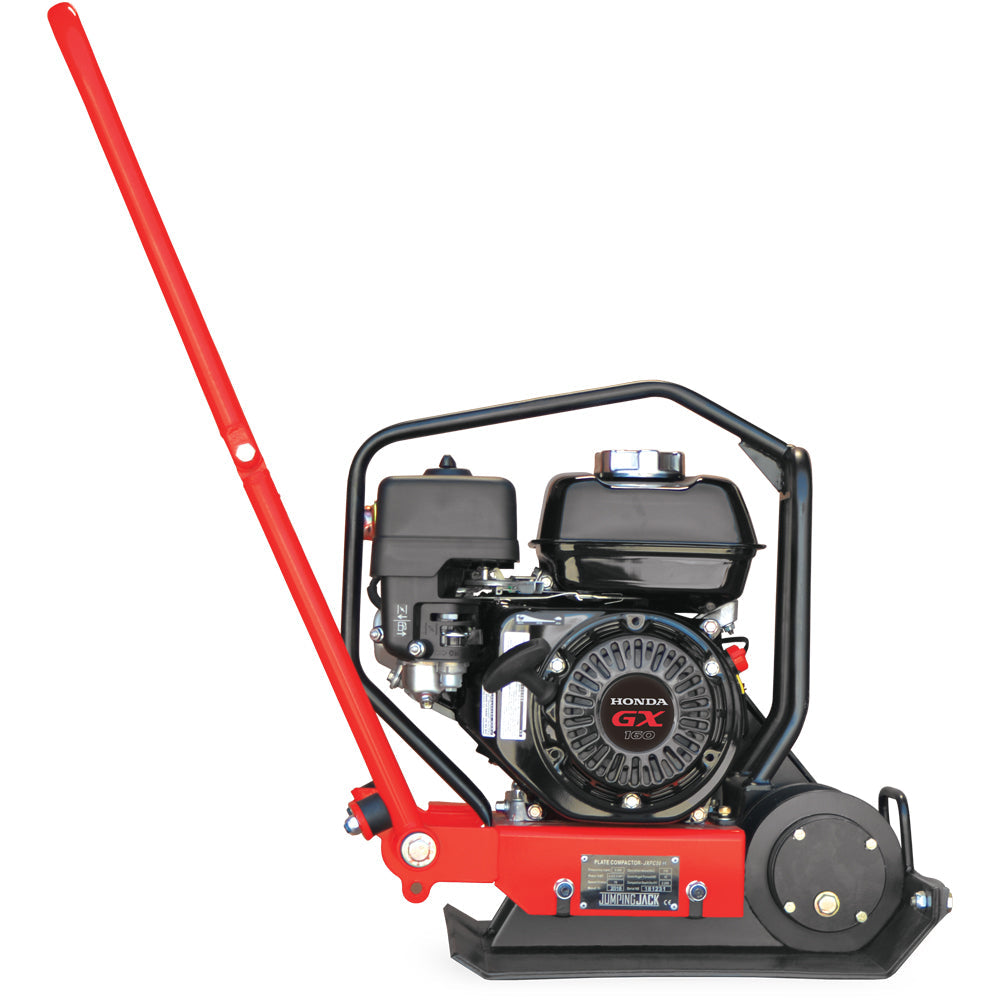

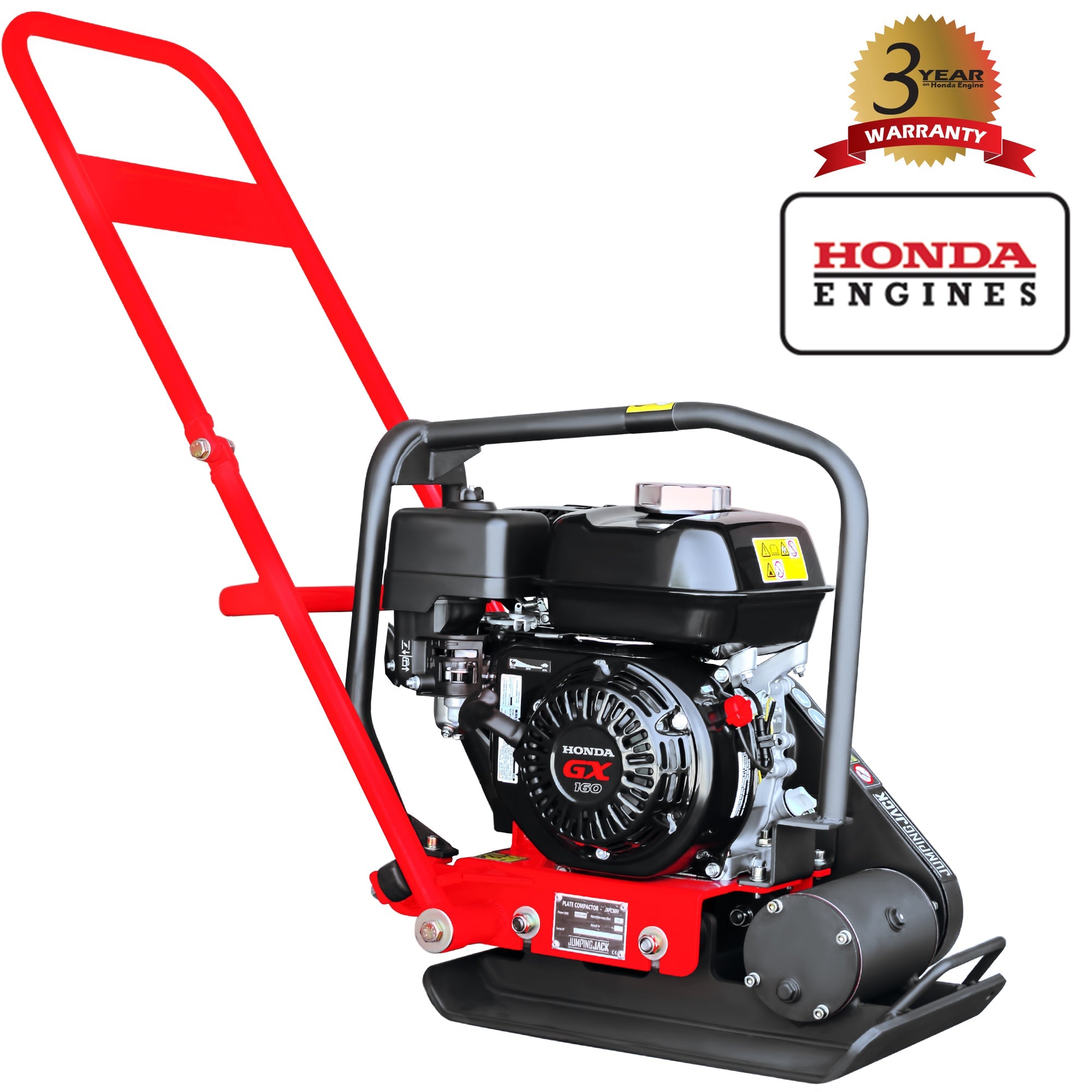

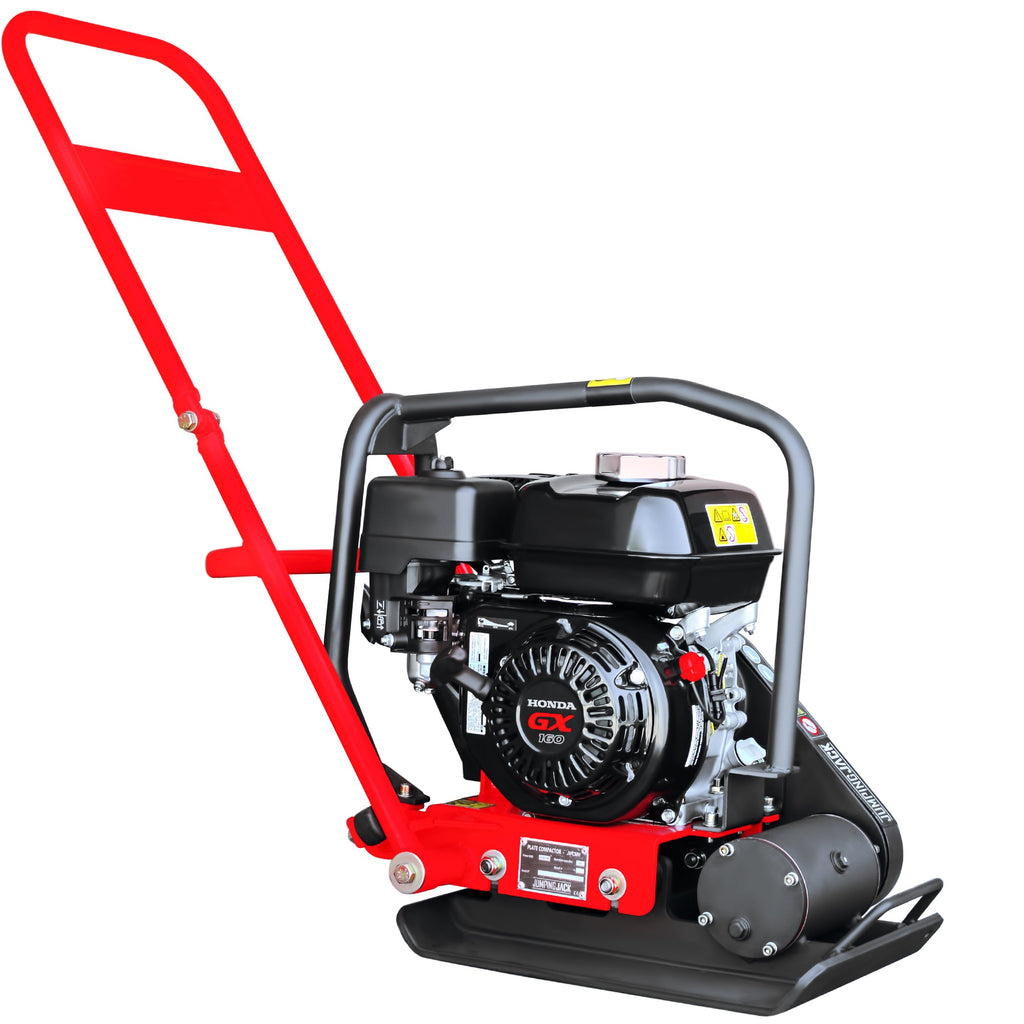

Powered by a 5.5HP Honda Engine, the JXPC50H plate compactor is perfect for patios, sidewalks, and more. Designed with a 17 in. x 13 in. plate, this vibratory plate is built to maneuver narrow, cramped spaces. Operating at 5,900 Blows per Minute (BPM), the JXPC50H compacts cohesive and granular soils up to 8 in. Ideal for compacting landscapes, hardscapes, roadways, and asphalt, this vibratory plate is perfect for small construction crews and do-it-yourselfers alike.
- 163cc / 5.5 HP Honda GX160 Engine
- Compaction of cohesive soils up to 4 in.
- Compaction of granular soils up to 8 in.

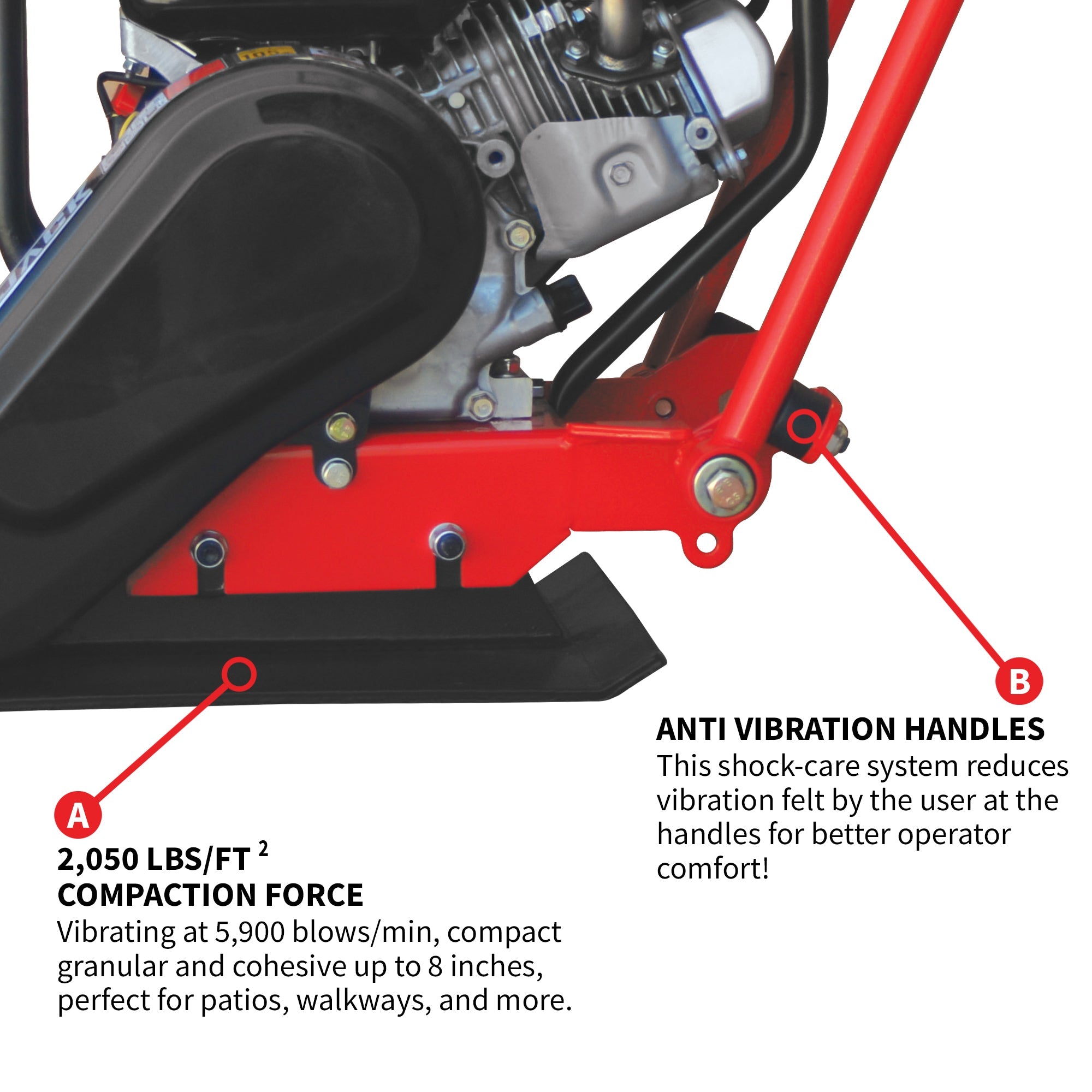

- Compaction force of 2,050 lbs./ft.
- Engine: Honda GX160
- Power: 5.5 HP
- Weight: 110 lbs

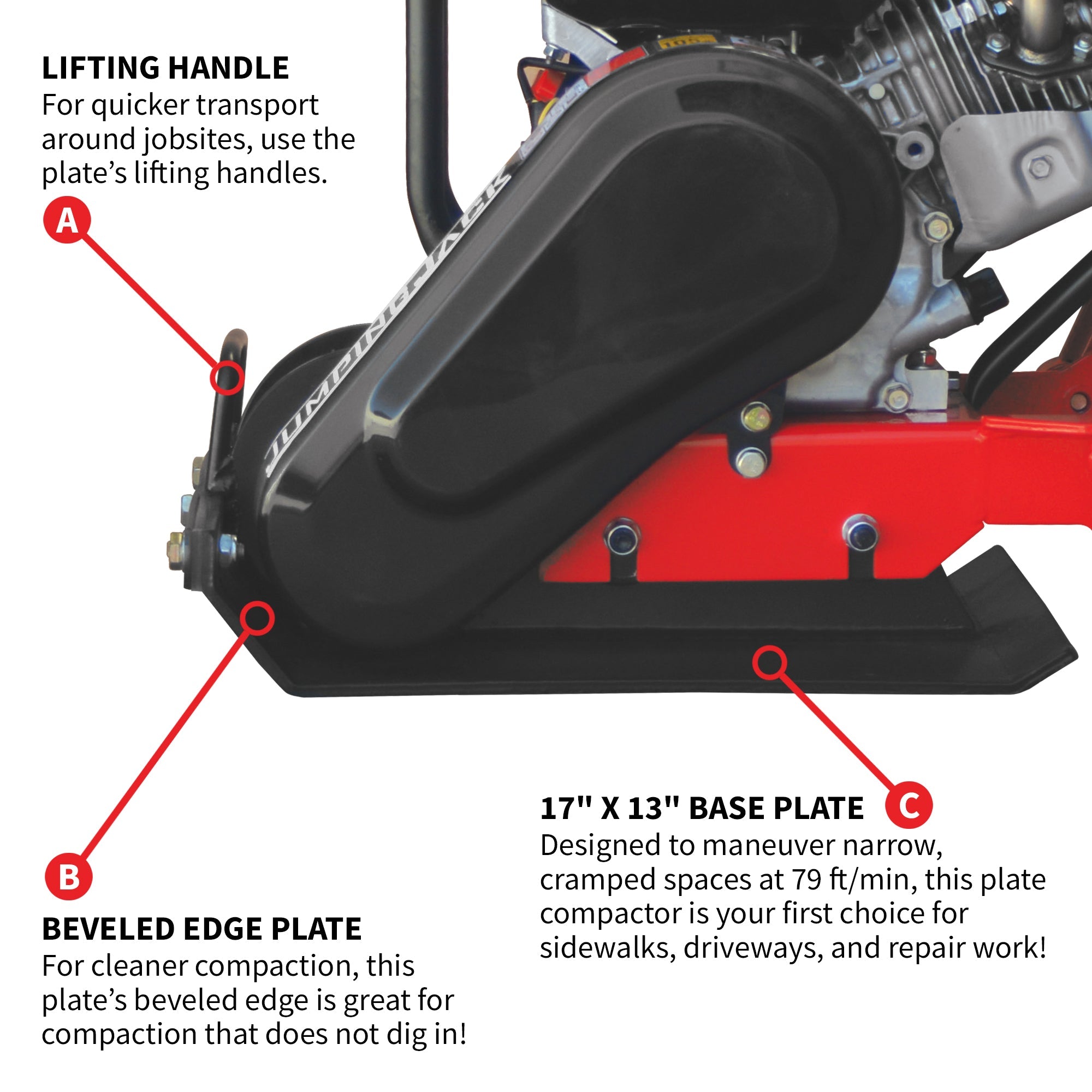

- Plate Size (LxW): 17 x 13 in
- Compaction Force: 2,050 lbs./ft.
- Blows per Minute (BPM): 5,900
- Centrifugal Force: 9 Kn
- Vibration Frequency: 100 hz
- Travel Speed: 79 ft/min
- JXPC50H Plate Compactor
- Operations Manual

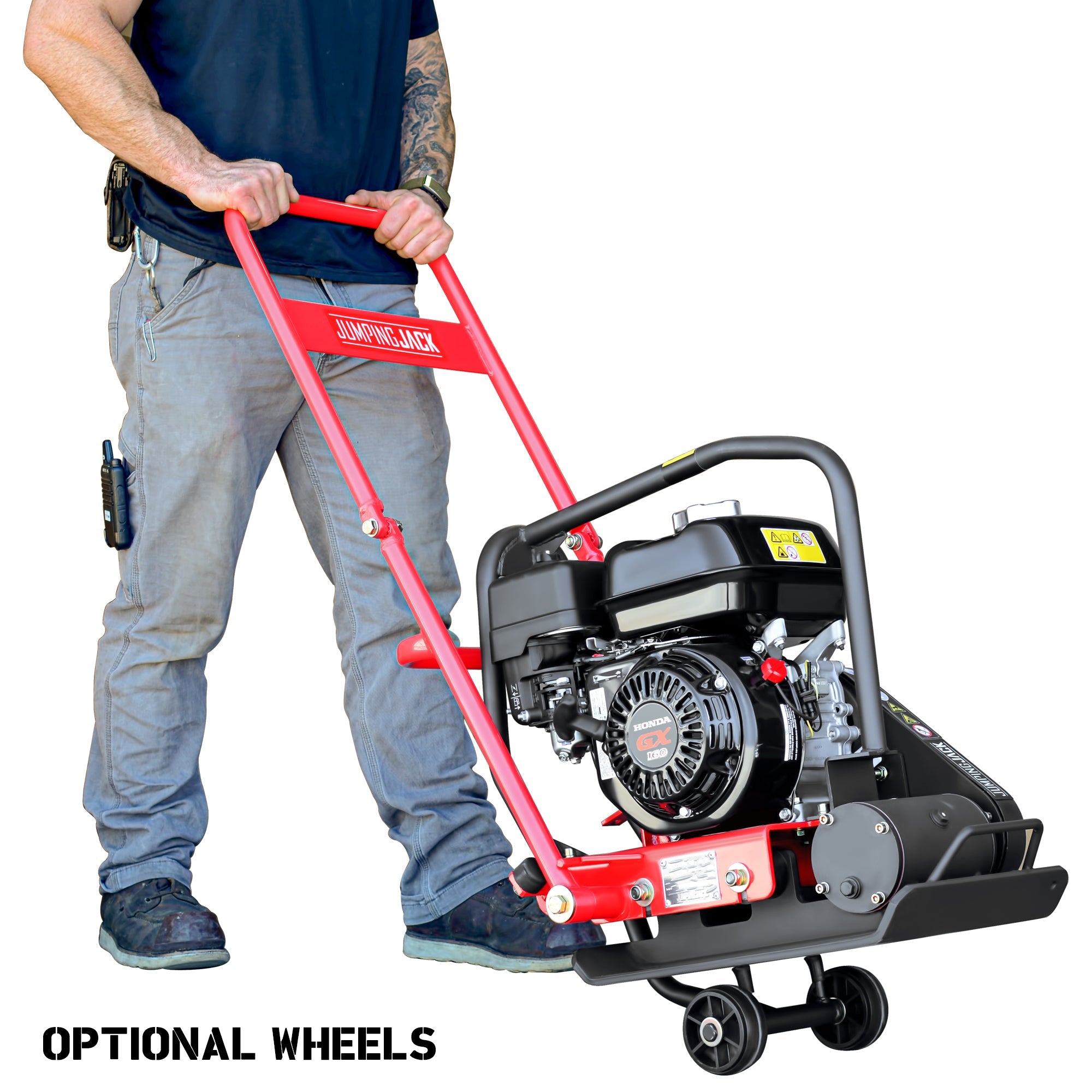

- Wheel Kit (Optional)
- Retaining Walls
- Footings and Foundation Projects
- Landscapes and hardscapes
- Patchwork on Asphalt
- Pipeline Applications
- Road Repair and Trenchwork
- Cohesive Soils and Granular Soils
- Sticky soils - such as clay or clayey silt
- Gravel, sand, silt, clay, or mixed soils
- Base, Subbase, Subgrade, Subsoil
- Backfill Pools, Parks, Cemeteries, and Golf Courses

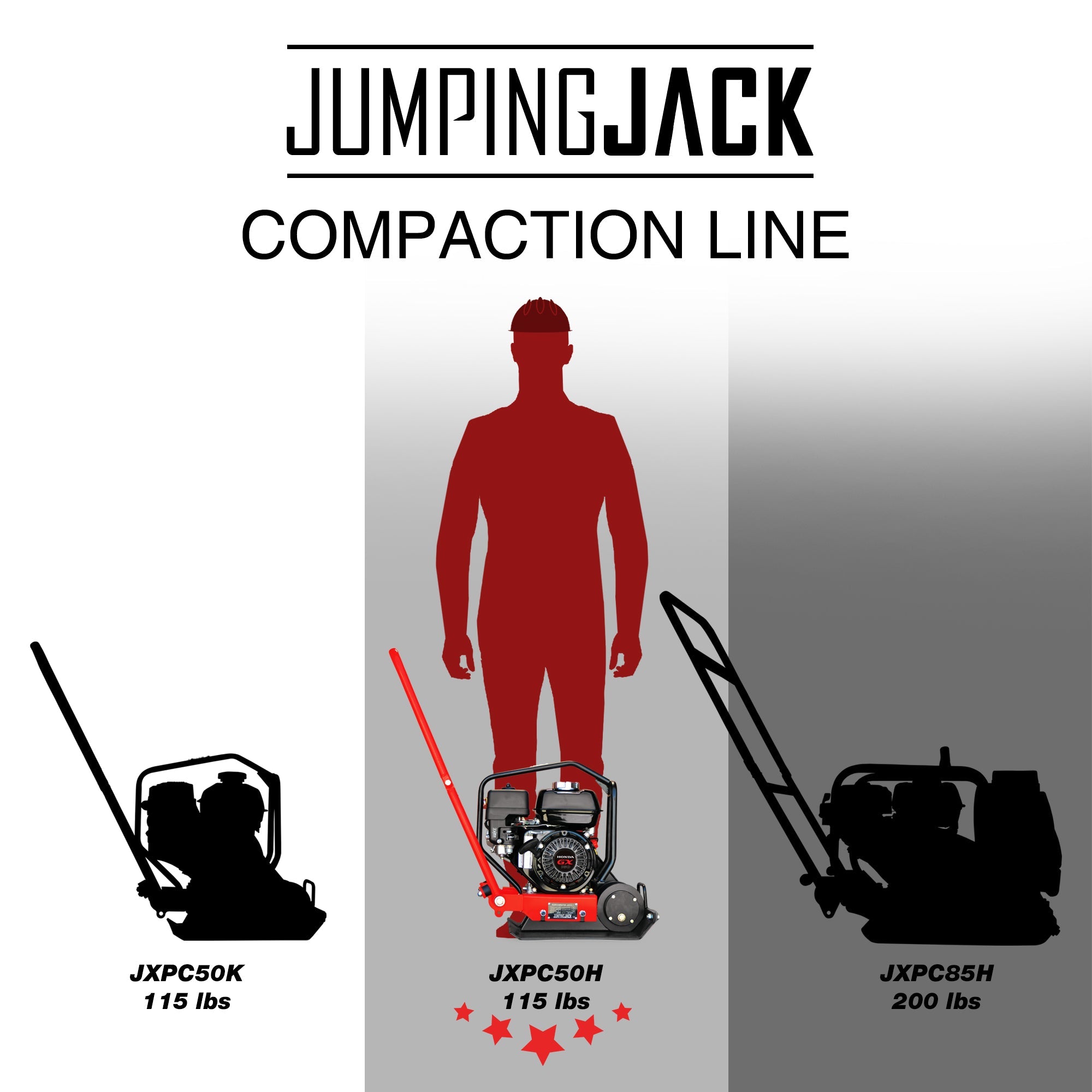

What Compactor Do I Need?
A compactor is an essential tool for preparing a solid base for structures such as patios, retaining walls, concrete slabs, and more. Tamping rammers and compactors are used to increase the density of soil by reducing air voids, which help to improve soil stability, support structures, and prevent settling. With so many options on the market, choosing the right plate compactor can be a daunting task.
If you are installing artificial turf, building dirt pathways, or need to improve soil stability - but do not need to adhere to a minimum compaction rating you can use a compactor in the 110 lbs (50 kilo) range. These are great for anyone looking to get a job done by themselves with little headache.
If your project involves building a retaining wall, patio, driveway, sidewalk, or concrete slab you will need a bit more muscle. Rammers and compactors in the 130-200 lbs (60-90 kilo) range that can achieve a compaction force above 3,000 lbs²/ft are best. You will achieve 98-100% compaction ratings needed for proper compaction to prevent soil settling and foundation damage.
Equipment needed for large compaction projects should also be able to achieve a minimum compaction force of 3,000 lbs²/ft to reach 98-100% compaction ratings needed for proper compaction. Where this equipment differs from medium range equipment is it's efficiency. Large jobs are typically performed by professional contractors where speed and jobsite efficiency are critical to their success. Compactors that help jobsite efficiency may feature reverse control, hydraulic drive, and the ability to compact asphalt. If you are not too worried about the time it takes to complete a project, you can save a few bucks and invest in equipment in the medium range.
