ALL MUSCLE. PURE PERFORMANCE.
Great condition with less than 4 running hours. May have minor blemishes.

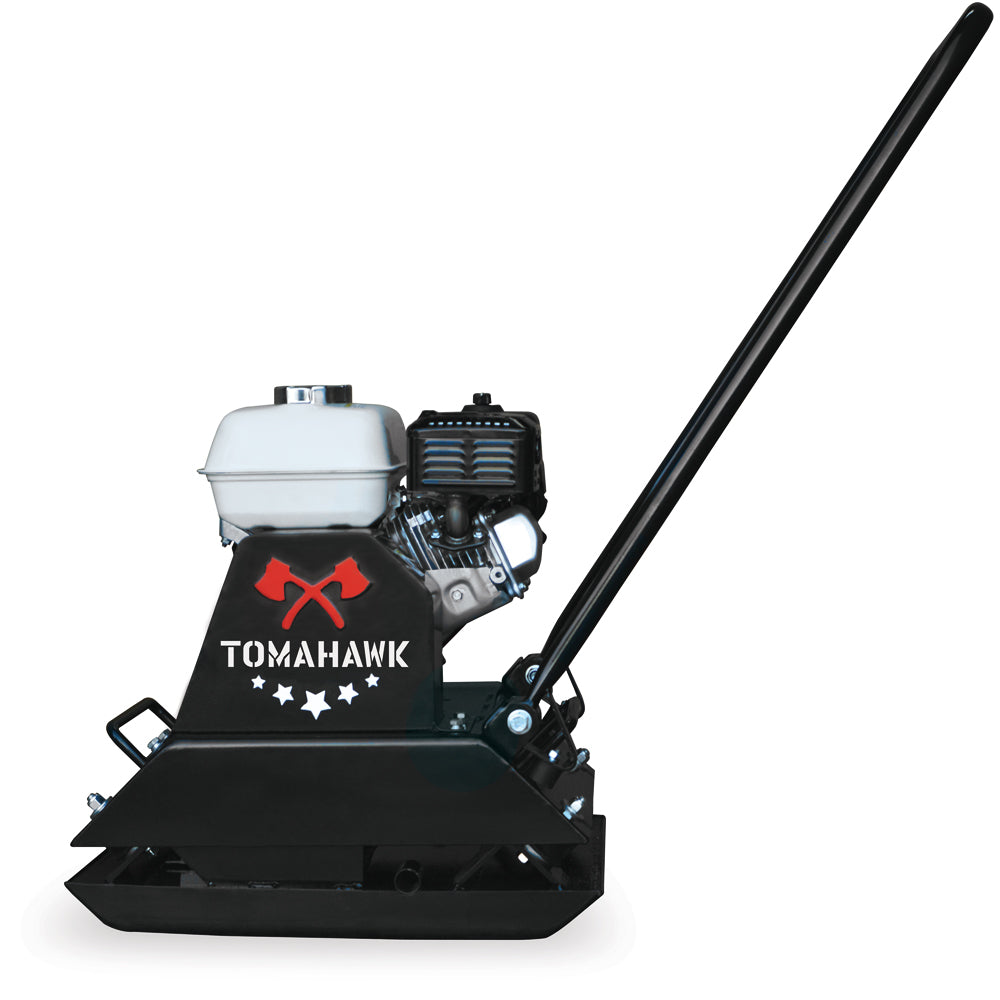

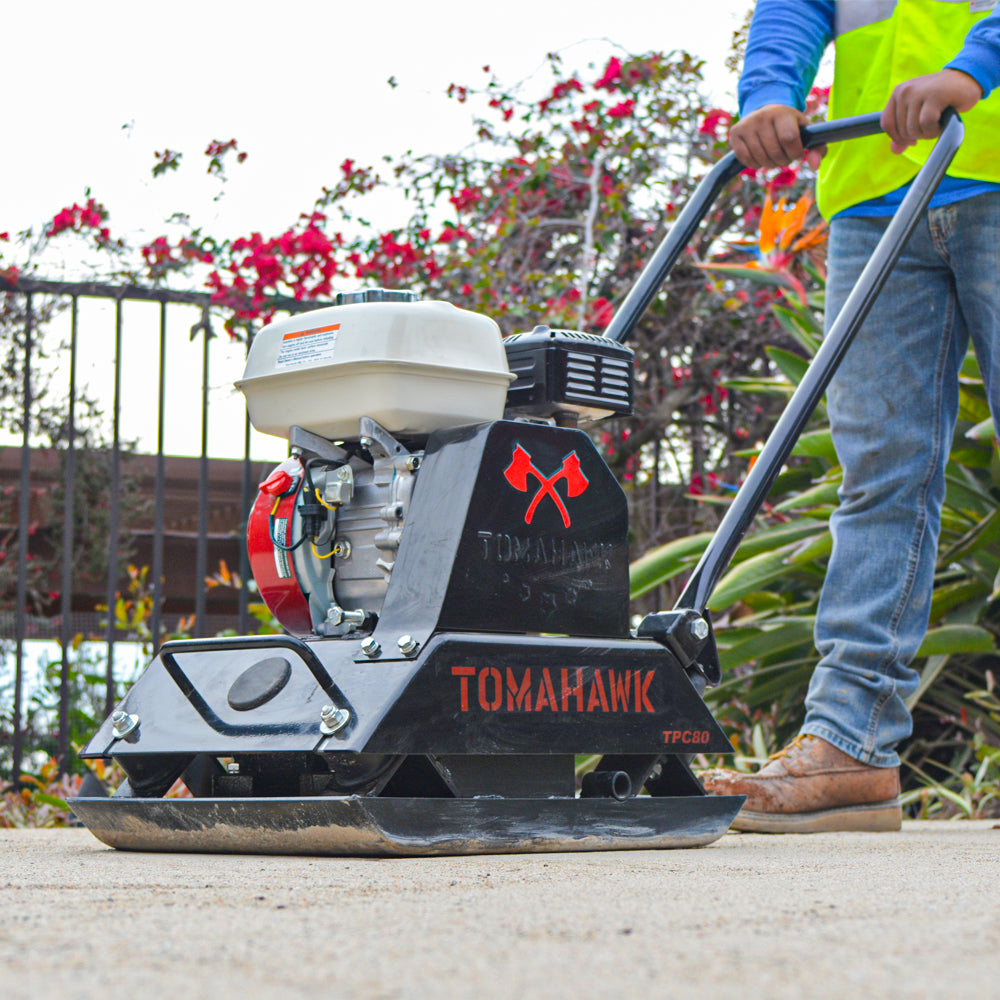

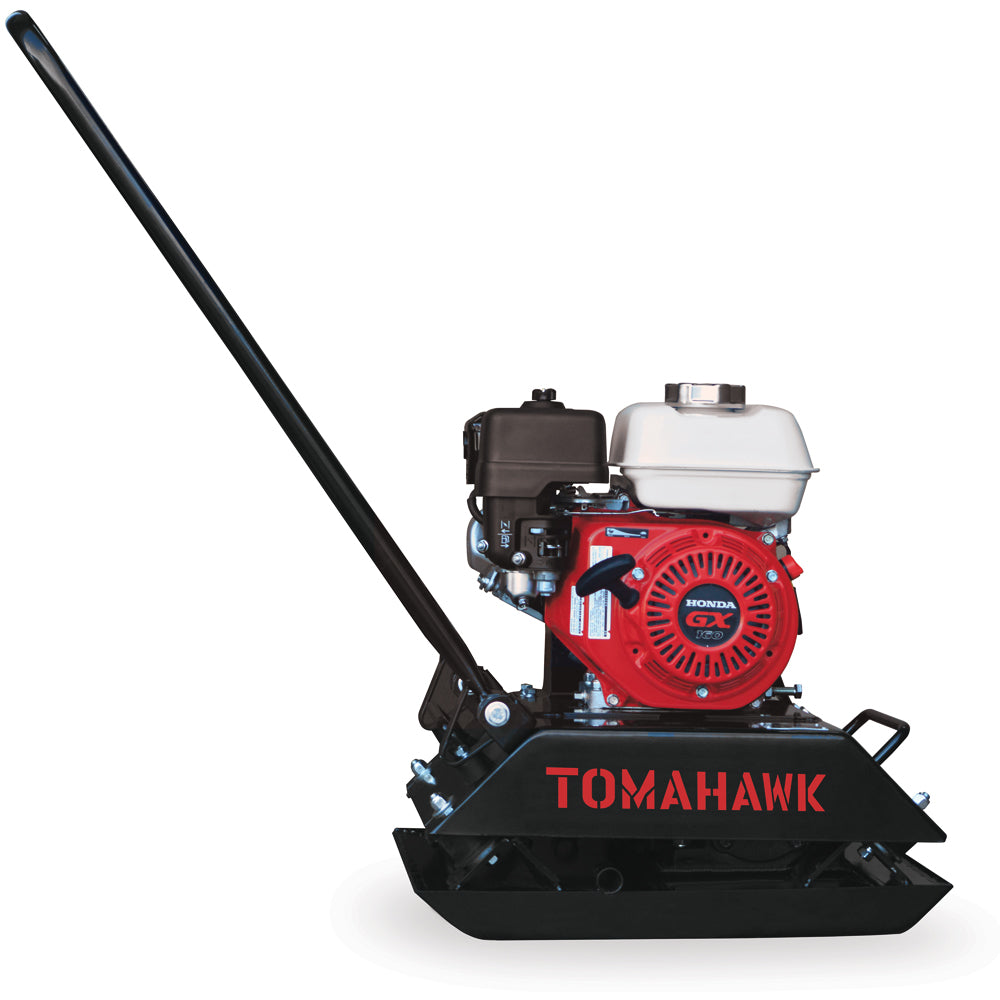

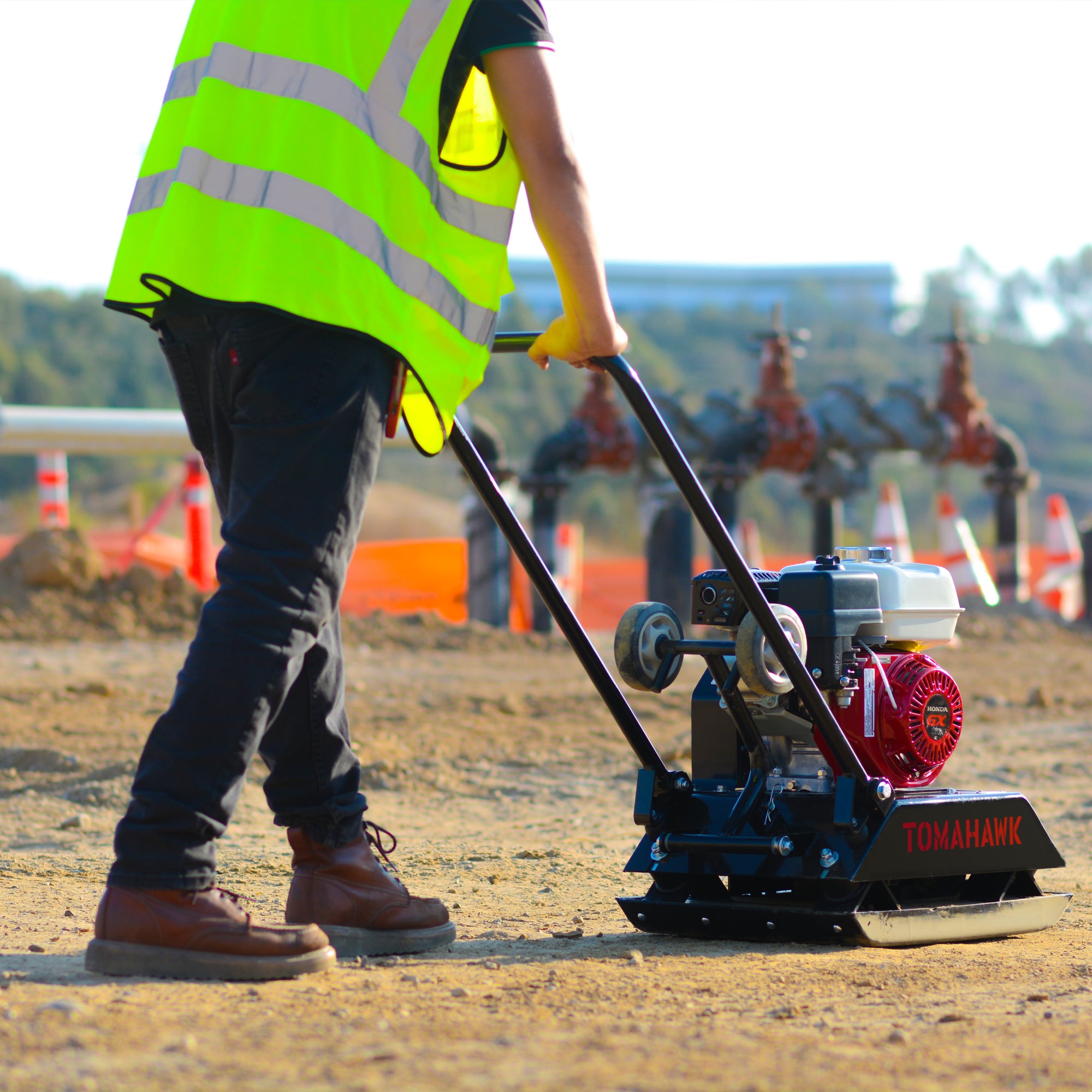

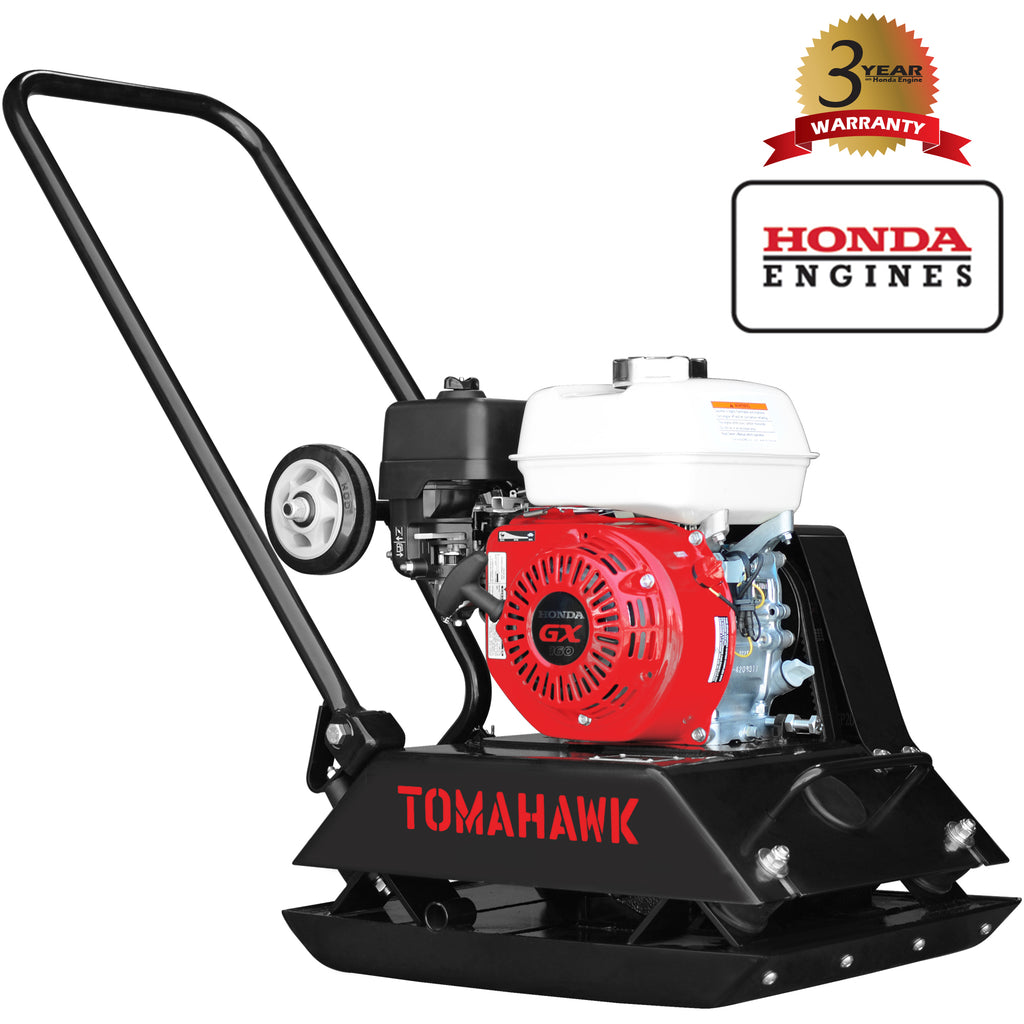

Featuring a 17” x 21” cast iron base plate, the TPC80H Forward Plate Compactor delivers an incredible force of 3,000 lbs. per square ft. at 6,400VPM. Powered by the incredible 5.5 HP Honda Engine Engine, this vibratory plate is perfect for jobsites, households, and rental fleets. Designed specifically to maneuver narrow, cramped spaces, the TPC80H compacts cohesive and granular soils up to 22 inches. Ideal for compacting landscapes, hardscapes, roadways, and asphalt, this vibratory plate is perfect for professionals, construction equipment rental, and do-it-yourselfers alike. Durable and tough, the TPC80H Forward Plate Compactor is built to last, making it perfect for those tackling projects including walkways, patios, driveways, or paver installation.
- 5.5 HP Honda Engine
- Achieve 100% compaction ratings on field density tests and nuclear densometers
- Compaction force of 3000 lbs. per square ft. at 6400 blows per minute
- Compaction of cohesive and granular soils and clays up to 22 in.
- Travel speed of 79 ft. per minute
- The compact 17 x 21 in. plate works around cramped and narrow spaces
- A full 2 dBA quieter than competitive models
- Large 1 Gal. fuel
- CARB and EPA compliant
- Engine: 5.5HP Honda
- Power: 5.5HP
- Weight: 176 lbs
- Plate Size (LxW): 17 x 21 in
- Centrifugal Force: 13 Kn
- Vibration Frequency: 100 hz
- Travel Speed: 79 ft/min
- TPC80H 5.5HP Plate Compactor

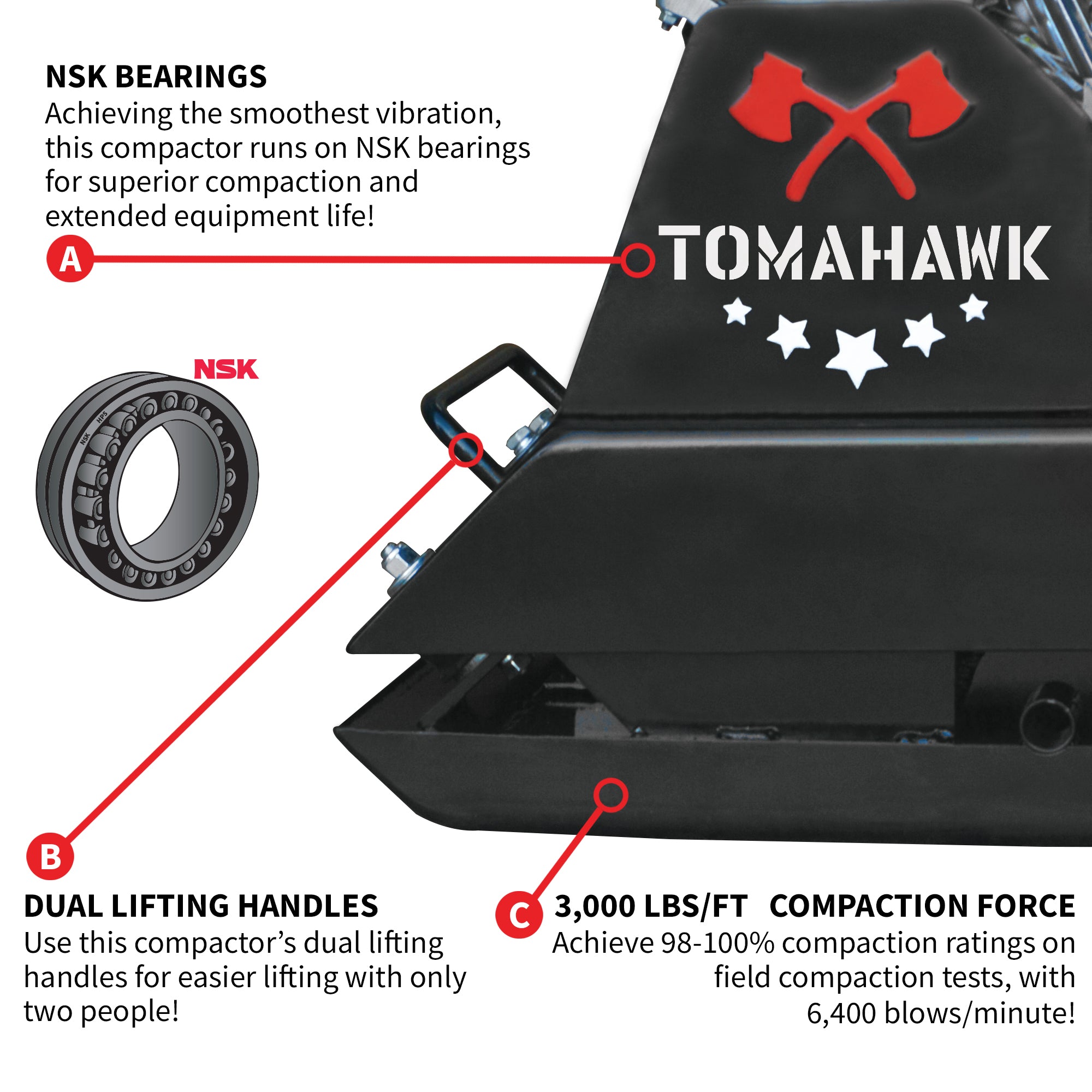

- NSK Bearings
- Retaining Walls
- Footings and Foundation Projects
- Landscapes and hardscapes
- Patchwork on Asphalt
- Pipeline Applications
- Road Repair and Trenchwork
- Cohesive Soils and Granular Soils
- Sticky soils - such as clay or clayey silt
- Gravel, sand, silt, clay, or mixed soils
- Base, Subbase, Subgrade, Subsoil
- Backfill Pools, Parks, Cemeteries, and Golf Courses
What Compactor Do I Need?
A compactor is an essential tool for preparing a solid base for structures such as patios, retaining walls, concrete slabs, and more. Tamping rammers and compactors are used to increase the density of soil by reducing air voids, which help to improve soil stability, support structures, and prevent settling. With so many options on the market, choosing the right plate compactor can be a daunting task.
If you are installing artificial turf, building dirt pathways, or need to improve soil stability - but do not need to adhere to a minimum compaction rating you can use a compactor in the 110 lbs (50 kilo) range. These are great for anyone looking to get a job done by themselves with little headache.
If your project involves building a retaining wall, patio, driveway, sidewalk, or concrete slab you will need a bit more muscle. Rammers and compactors in the 130-200 lbs (60-90 kilo) range that can achieve a compaction force above 3,000 lbs²/ft are best. You will achieve 98-100% compaction ratings needed for proper compaction to prevent soil settling and foundation damage.
Equipment needed for large compaction projects should also be able to achieve a minimum compaction force of 3,000 lbs²/ft to reach 98-100% compaction ratings needed for proper compaction. Where this equipment differs from medium range equipment is it's efficiency. Large jobs are typically performed by professional contractors where speed and jobsite efficiency are critical to their success. Compactors that help jobsite efficiency may feature reverse control, hydraulic drive, and the ability to compact asphalt. If you are not too worried about the time it takes to complete a project, you can save a few bucks and invest in equipment in the medium range.
How Does this Ship?
⚠ This is an oversized item which requires shipment on a freight truck. Ship this item to a business address to shave 1-2 days off the transit time!
HOW DOES THIS SHIP?
CA Proposition 65 Warning
⚠ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Info and GuidesTPC80H Operations Manual

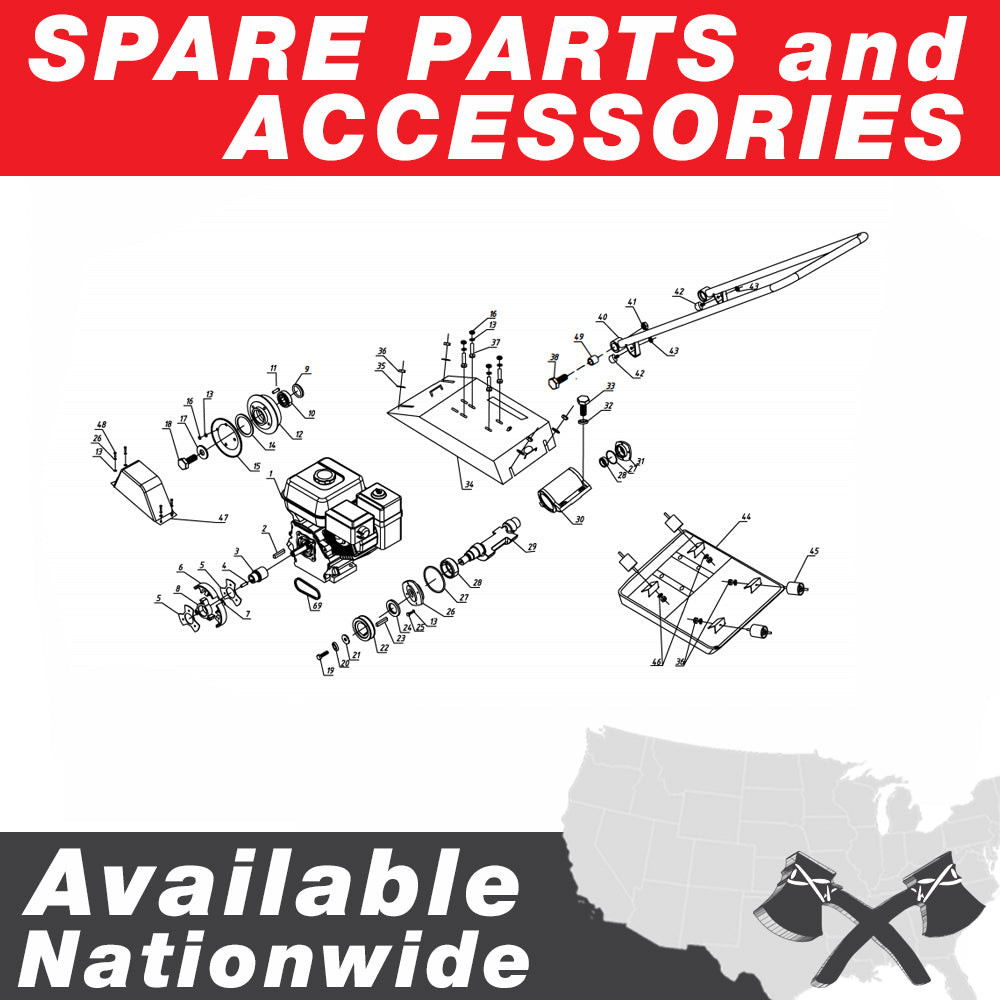

TPC80H Parts Manual
