Description

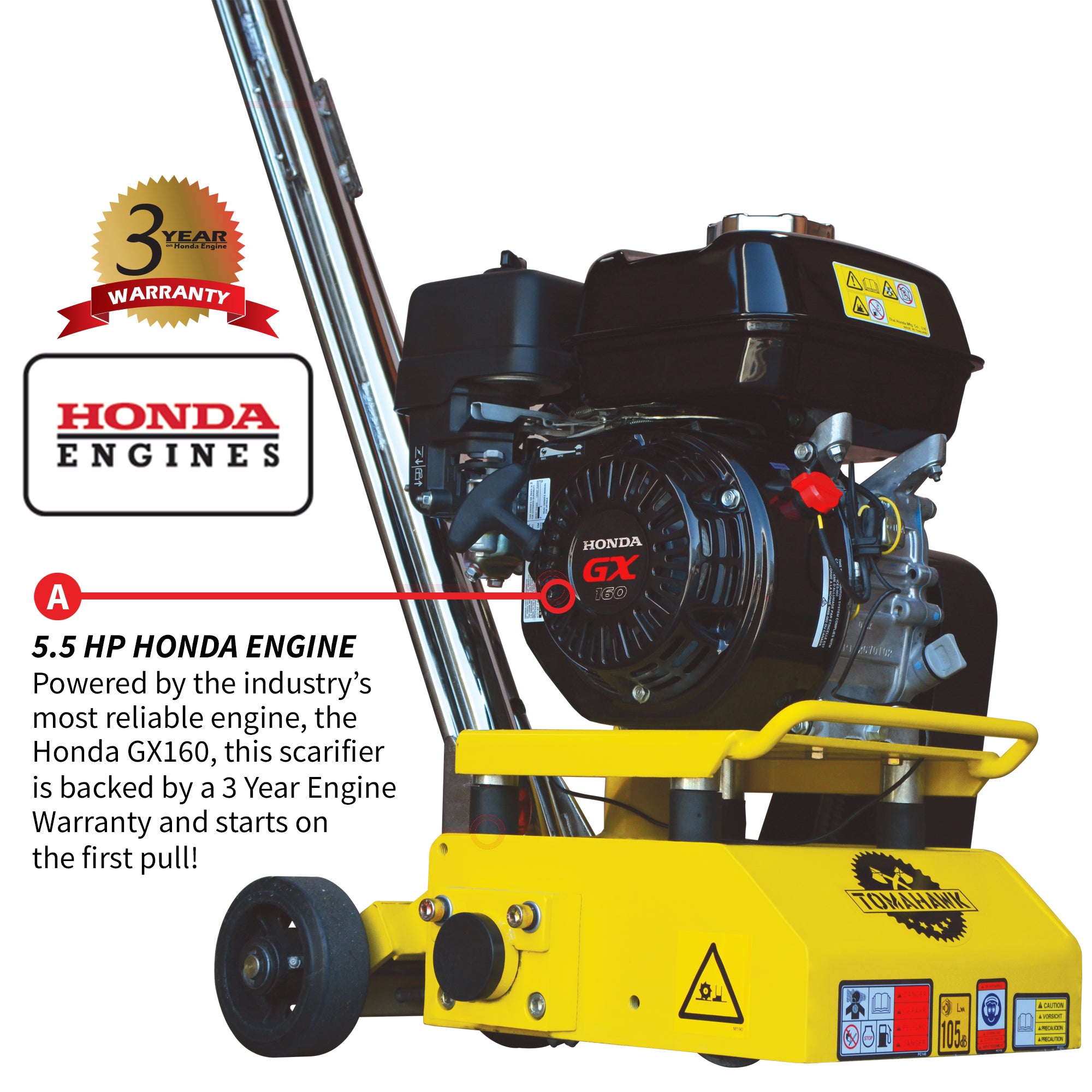

5.5HP HONDA ENGINE
Powered by an incredibly reliable air-cooled 163cc / 5.5 HP Honda GX160 Engine.
350 - 500 FT²/HOUR
Leveling at 1/8" Depth Per Pass, Tomahawk Scarifiers can cover 350 - 500 square feet per hour, to maximize operator efficiency.

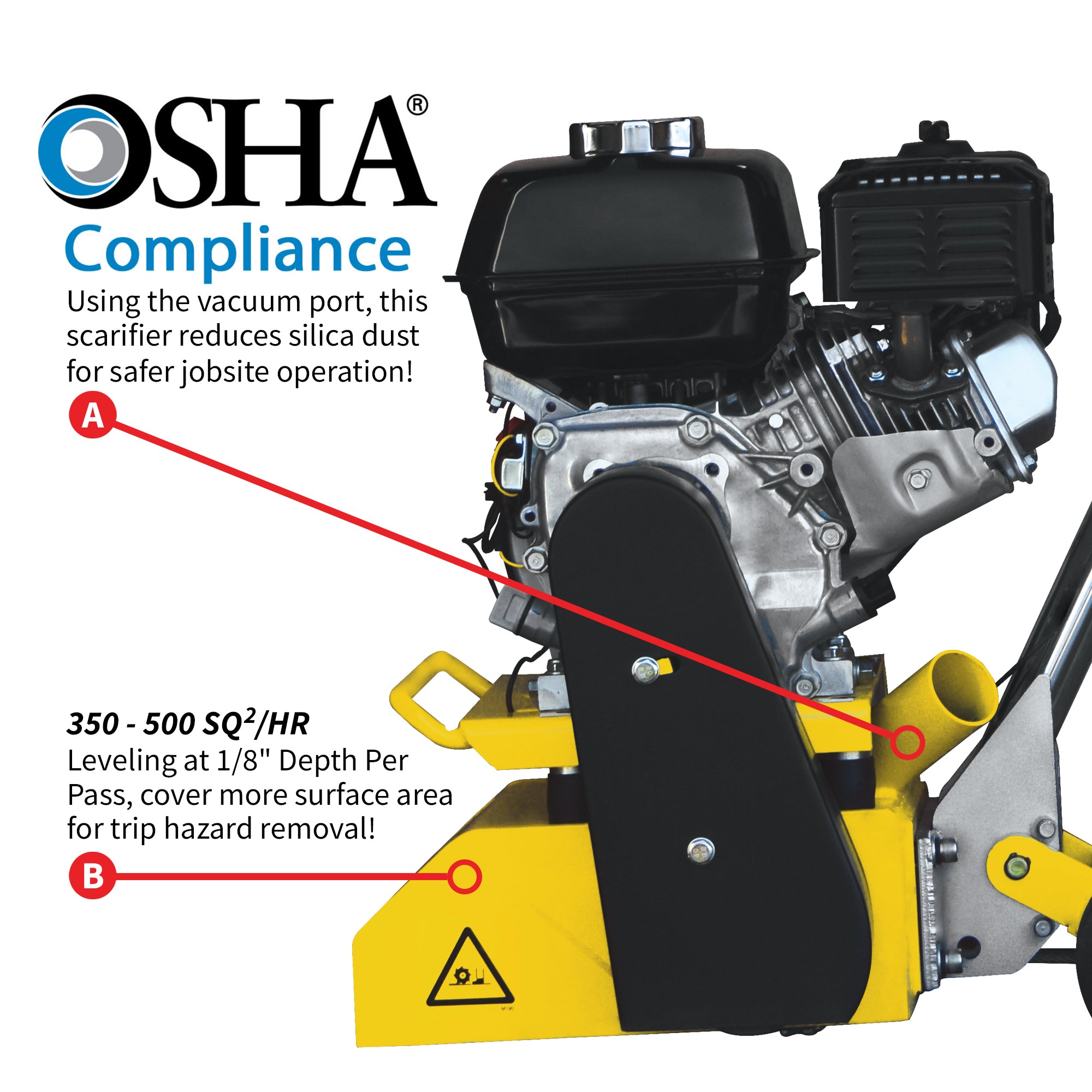

OSHA COMPLIANT

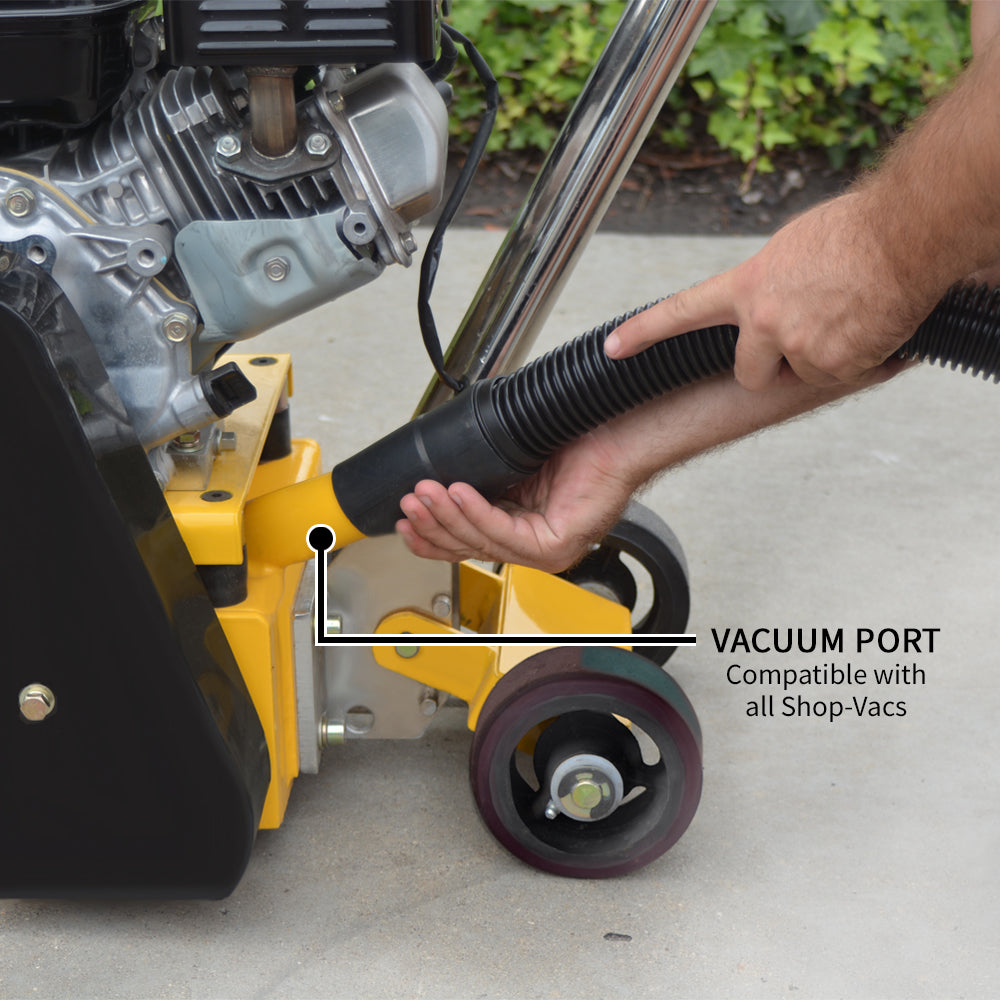

With a vacuum port designed to fit most bags and shop vacs, this scarifier reduces dust for safer operation.
REMOVE SURFACE MARKINGS
Perfect for traffic line and marking removal, floor cleaning, and surface preparation.
SIMPLE DEPTH CRANK
For more precise cutting, adjust the blade depth easily using the scarifier's blade depth crank!
TRUSTED NATIONWIDE
With long lasting materials, parts, & more – see why contractors large and small are choosing Tomahawk for their construction projects!
SAVE MONEY
Spray your own backyard and save hundreds of dollars you would pay to pest services.
Description
The Tomahawk TSCAR-8H Gas Scarifier is perfect for sidewalk trip hazard repair, floor cleaning and preparation, as well as, concrete, coating, traffic line, and marking removal. Powered by an incredible 5.5 HP Honda engine, easily scarify, level, and smooth approximately 350-500 sq. ft. per hour of concrete surface at a depth per pass of 1/8 in.
Features
- Air-cooled 163cc / 5.5 HP Honda GX160 Engine
- Scarifies 350 - 500 ft2/hour at 1/8" Depth Per Pass
- Remove traffic lines at 800 - 1,000 linear feet per hour

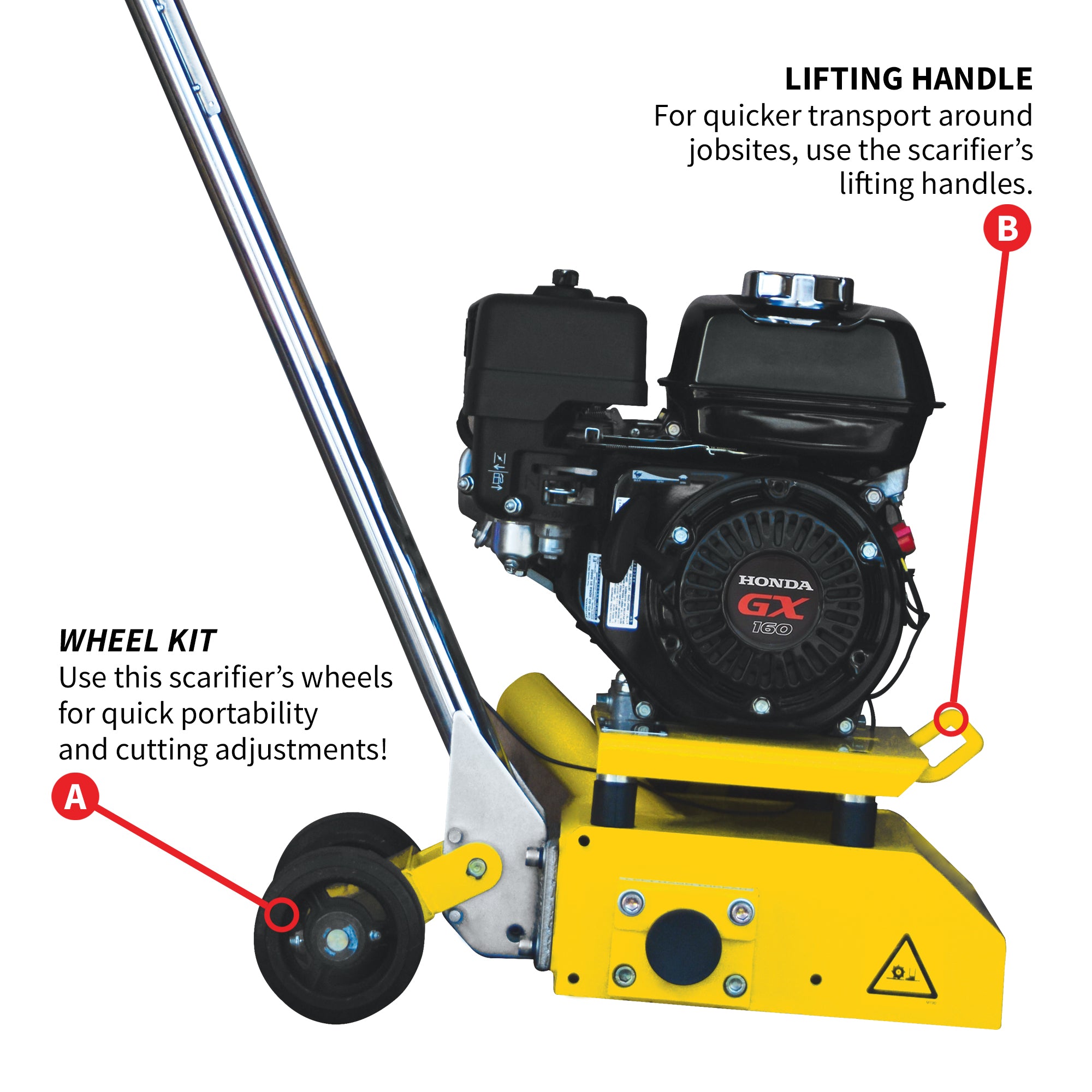

- Engine raised over drum to maximize surface contact
- Front-mounted lifting handle for simple loading/unloading
- Vacuum port equipped to fit most bags
- Reduced vibration for optimal user comfort
Specifications
- Engine: Honda GX160
- Power: 5.5 HP (4.0kW)
- Working Width: 8 in. (350 - 500 sq. ft. per hour)
- Depth: 1/8 in. per pass
- Weight: 135 lbs. (61.2 kg)
- Warranty: 1 Year Warranty
Package Includes
- 8" Concrete Scarifier
- Honda GX160 Engine
- 3 Year Engine Warranty
- 2 Tungsten Carbide Cutter Drum
Applications
- Surface and Marking Removal
- Surface Leveling
- Sidewalk and Trip Hazard Repair
- Floor Grinding
- Concrete Grinding
- Traffic Line Removal
- Asphalt and Concrete Line Removal
- Concrete Edging
- Surface Texturing and Grooving
- Cleaning and texturing concrete and asphalt
- Concrete reduction and scabbing
- Removal of roof chippings
- Grooving applications
- Cleaning concrete form-work and shuttering
- Non-slip finishes
- Removal of coatings and plaster
Choosing the Right Drum for Your Concrete Scarifier

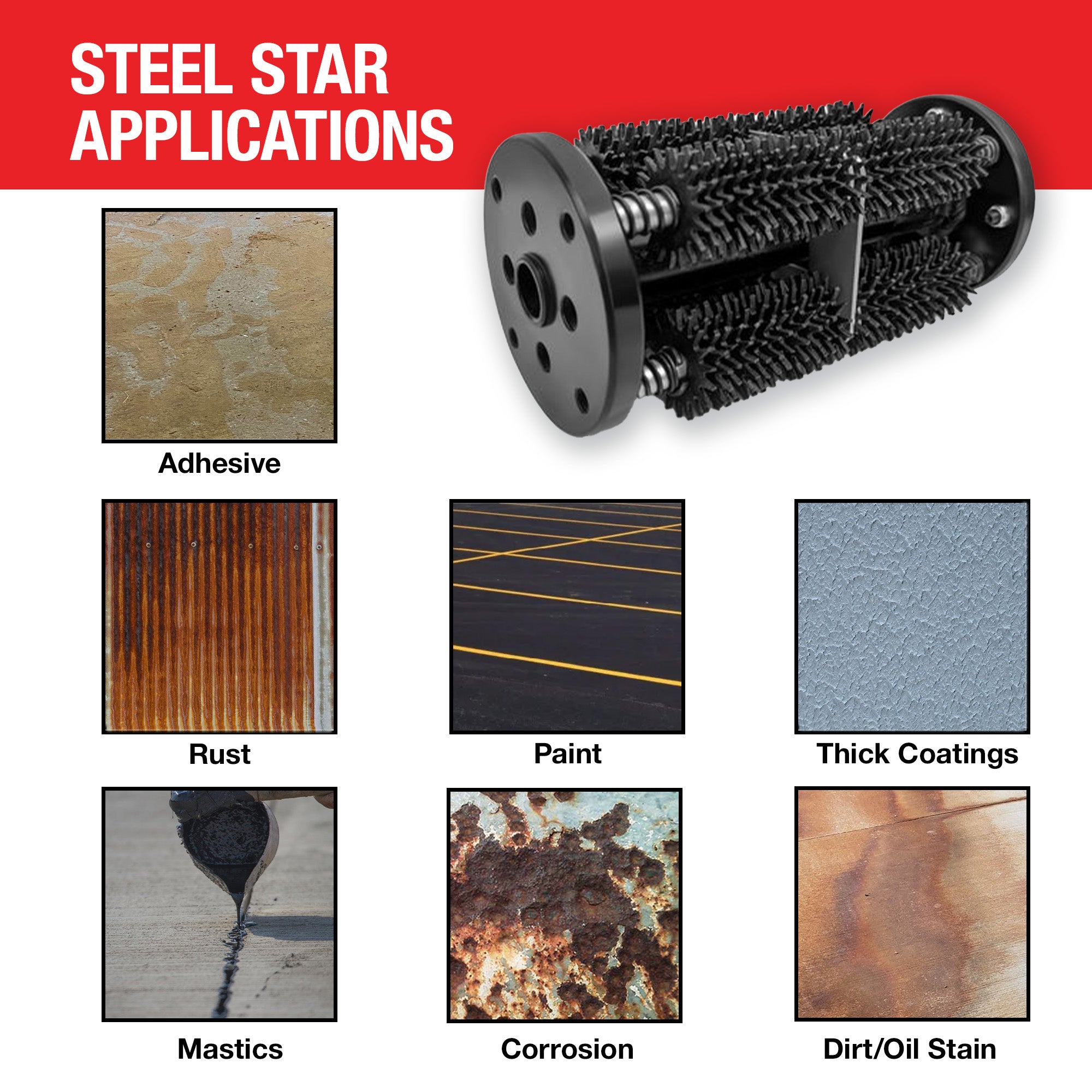

Steel Star Drums
- Applications: Adhesives, Paint, Mastics, Rust, Corrosion, Oil Stains
- Benefits: Versatile, easy installation.

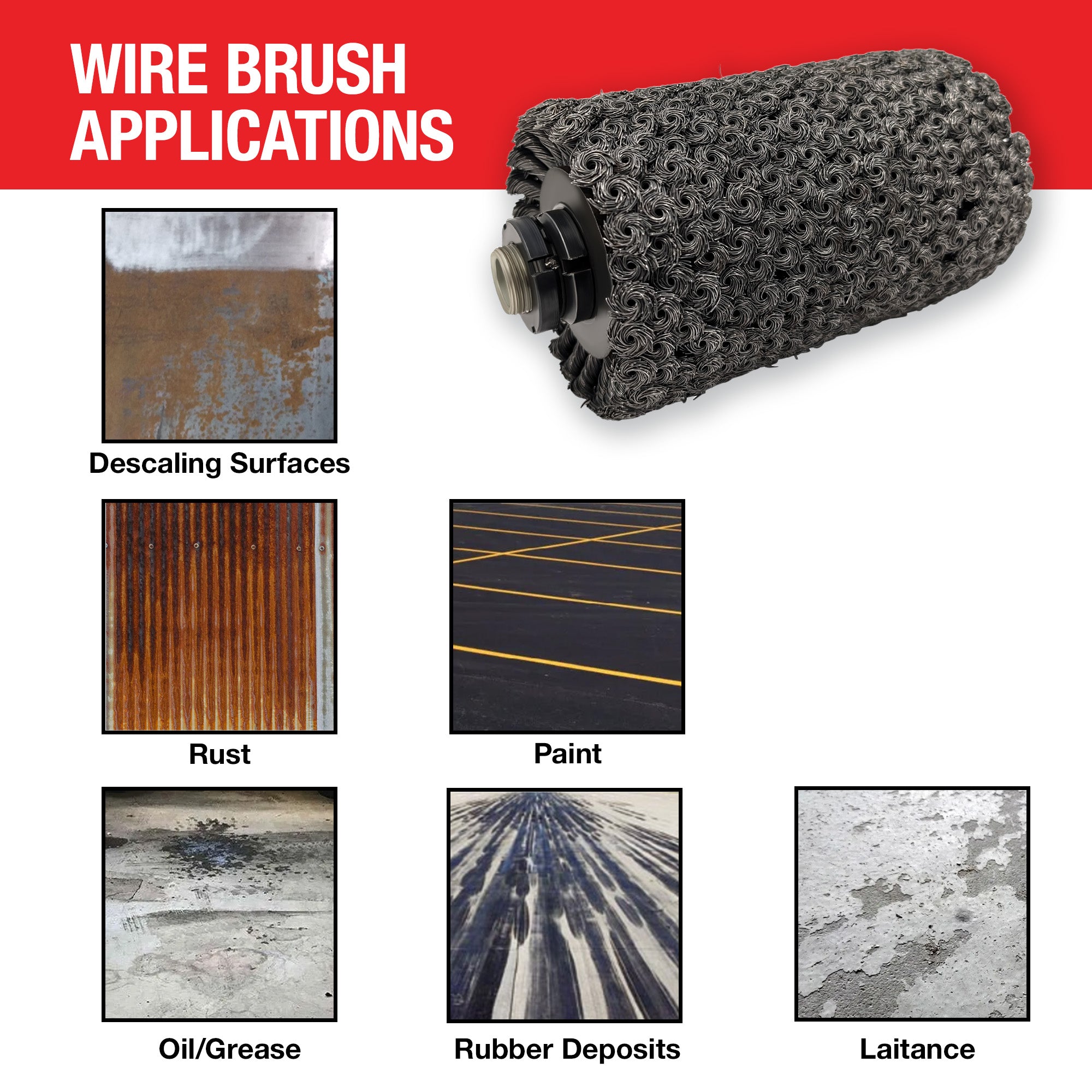

Steel Wire Brush
- Applications: Rust, Paint, Oil, Grease, Rubber Deposits, Latance
- Benefits: Effective cleaning, smooth finish.

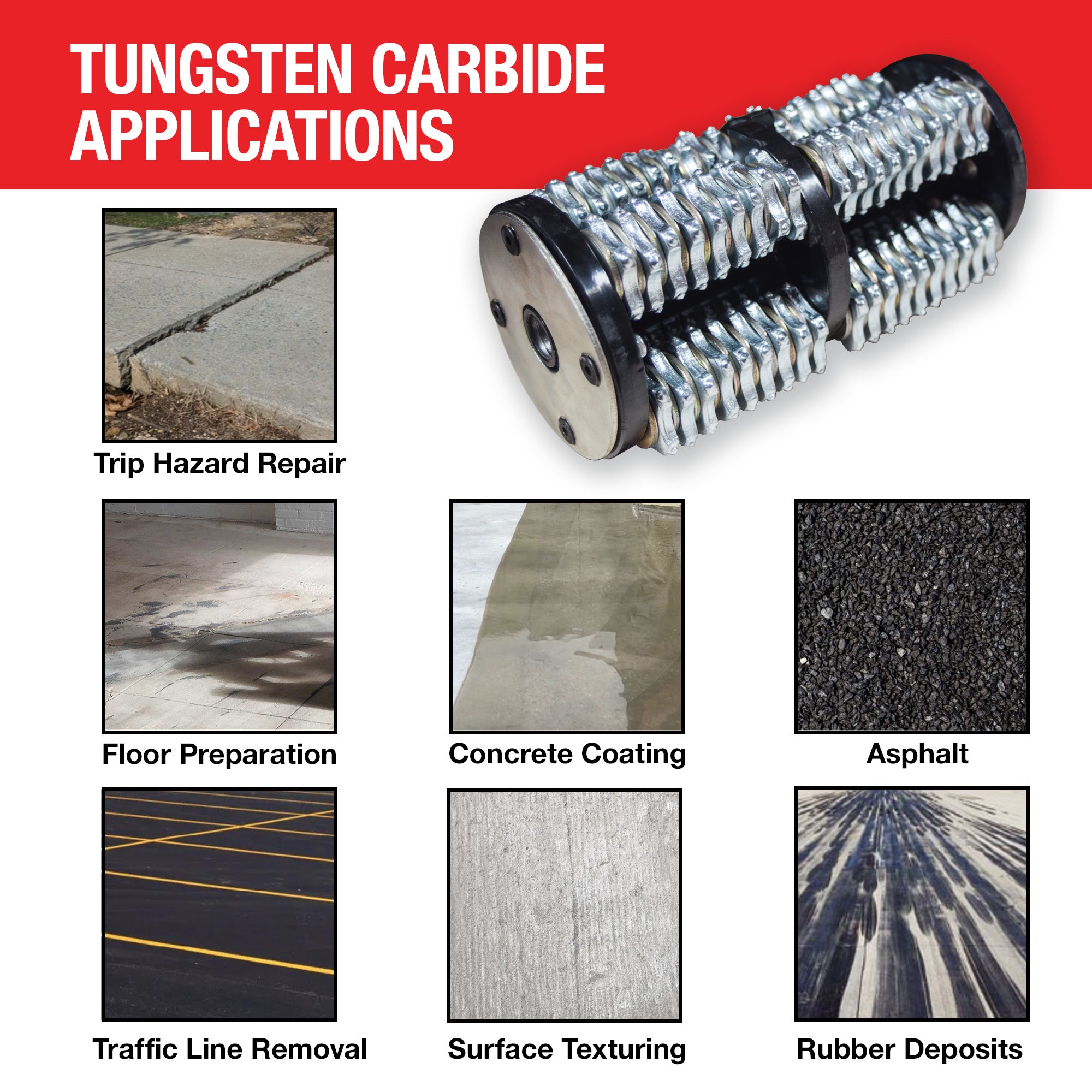

Tungsten Carbide Cage Blades
- Applications: Concrete milling, coating removal, non-skid surfaces
- Benefits: Versatile, suitable for various tasks.
How Does this Ship?
⚠ This is an oversized item which requires shipment on a freight truck. Ship this item to a business address to shave 1-2 days off the transit time!
HOW DOES THIS SHIP?
CA Proposition 65 Warning
⚠ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Info and Guides
TSCAR-8H Operations Manual
TSCAR-8H Parts Manual
Drum Assembly Parts Manual
QUESTIONS & ANSWERS
Ask a Question-
Does it remove traffic lines?
This scarifier is the best machine for removing trip hazards. It’s quick, efficient, and cost effective in comparison to other machines or replacing the concrete sidewalk. See our video for a quick look at some of the tomahawk scarifier applications.
-
Does it remove traffic lines?
Yes, this scarifier can remove traffic lines quickly. Up to 1000 linear ft per hour. This scarifier moves in an upcut rotation pulling the machine along at a steady pace.
-
Can one person lift this scarifier in and out of a truck by themselves?
Yes, with it's tungsten carbide cutters, the scarifier can easily plane asphalt, concrete and other similar surfaces.
-
Can one person lift this scarifier in and out of a truck by themselves?
Yes, this Tomahawk scarifier's dry weight is 135lbs and compact enough for one person to lift by themselves, making it easy to transport compared to other 200 lbs models on the market.
-
What kind of engine is used on this machine?
This scarifer uses a 5.5HP Honda Engine which is backed by a 3 year warranty and can be serviced at any Honda service centers nationwide.
-
Can you attach other blades and drums from other brands?
Yes, you can. The blades are interchangeable with some other brands such as EDCO, but we always recommend using Tomahawk blades on Tomahawk equipment.
-
What is the length of drum blade used on this concrete planer?
The Tomahawk TSCAR8H uses a 8” drum and is typically paired with tungsten carbide cutters for versatile use.
-
What kind of blade comes with this unit?

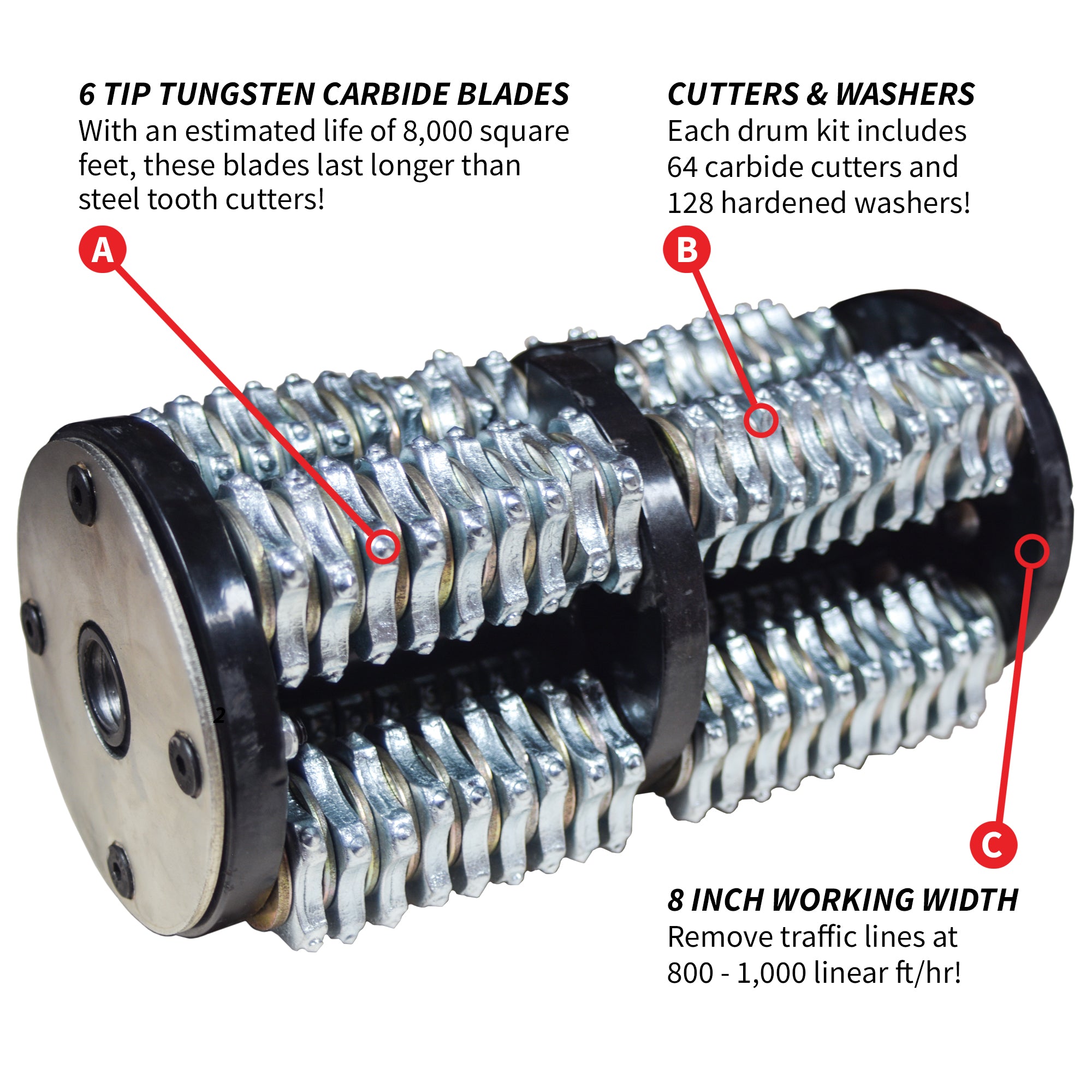

If you chose a scarifier blade bundle, your scarifier comes with an 8” tungsten carbide blade drum kit. Each kit comes with 64 carbide cutters and 128 hardened washers. Each cutter has 6 points with a tungsten carbide tip.
-
Does it need to be assembled?
Tomahawk Power Scarifier's need some assembly out of the box. Following the instructions included with the scarifier to assemble the engine to the handles. Blades are typically pre-installed on each scarifier unit, however if your blades are not installed or you are replacing blades, follow the instructions included in the box or in the Tomahawk Power Manuals Library.
