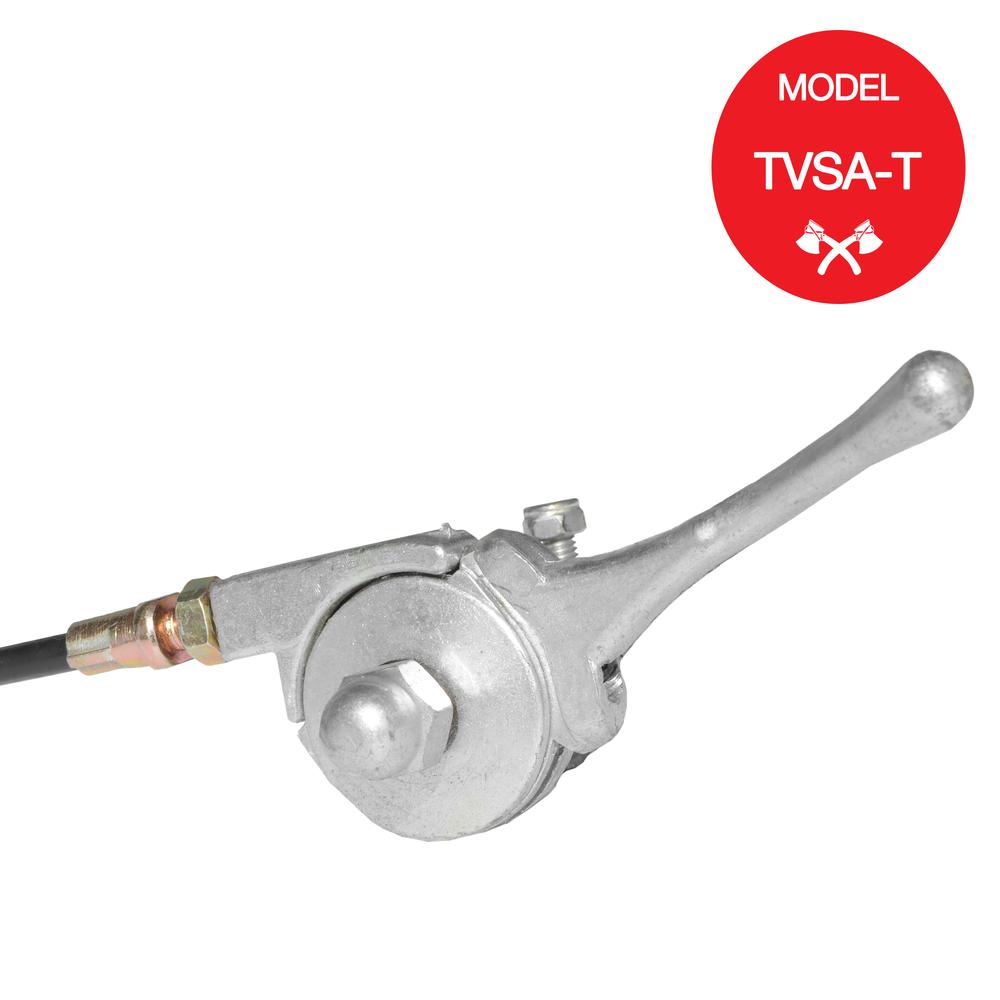

Replacement Throttle Cable Handle for the TVSA-T Tomahawk Engine Power Screed Assembly.
NOTE: This throttle fits 2019 models and newer.
Use these steps to replace the throttle on your power screed:
What You Will Need:
- Tomahawk Engine Power Screed (TVSA-T)
- Throttle Cable
- Plyers
- Screwdriver
Instructions:
Step 1:
Using plyers and a screwdriver, remove the screw that connects the throttle cable to the throttle lever at the top of the power screed.
Step 2:
Open the air filter to access the carburetor.
Step 3:
Remove the throttle cable from the slit on the carburetor.
Step 4:
Loosen the screw on the throttle cable and pull out of the black slot.
Step 5:
Remove the whole throttle cable.
Step 6:
Grab the new throttle cable.
Step 7:
Insert the throttle cable through the slit on the carburetor.
Step 8:
Place the screw on the black slot.
Step 9:
Make sure there is a washer on the front and back of the black slot.
Step 10:
Tighten the screw to secure the throttle cable to the carburetor.
Step 11:
Cover the carburetor with the air filter.
Step 12:
Connect the throttle cable at the top to the throttle lever.
Your power screed is now ready to operate!
