How To Replace The Flange On A TMD14 Backpack Fogger Mist Blower

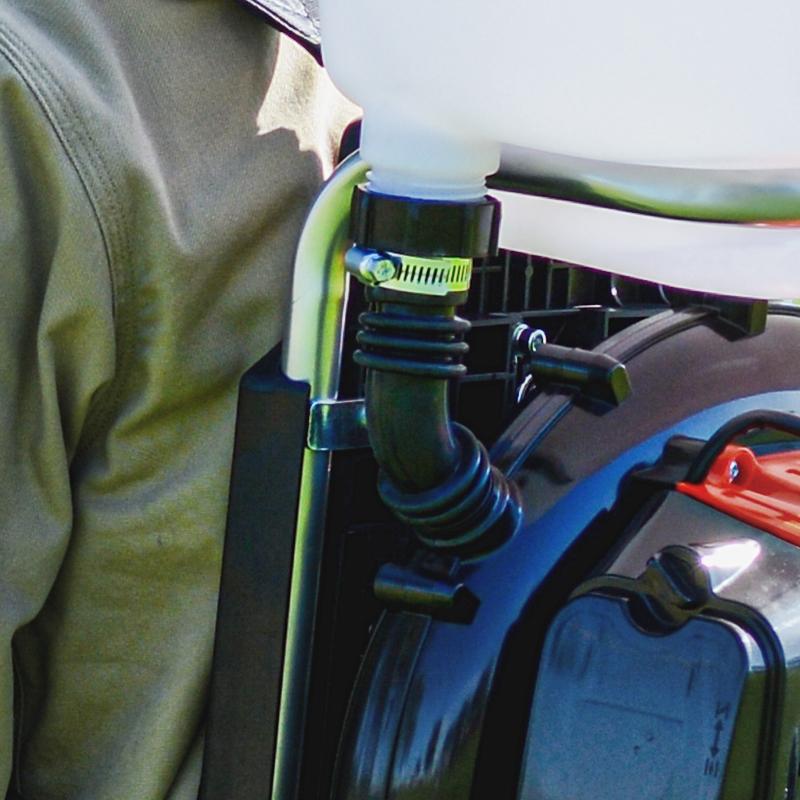

The Tomahawk 3.7 Gallon Turbo Boosted Backpack Fogger features a flange that is connected to the chemical tank and blower housing section of the fogger. This flange is used to transfer the liquid from the tank to the blower housing.

In need of a new flange? Here's how to replace it:



What You Will Need



Instructions

Step 1:

Pull the bottom part of the flange out of the blower housing.

Step 2:

Unscrew the black valve (attached the the flange) connected to the tank.


Step 3:

Remove the clear tube from the black valve connector.



Step 4:

Attach the new flange to the black valve connector.


Step 5:

Connect the clear tube to the black valve connector.


Step 6:

Screw on the black valve connector to the chemical tank.


Step 7:

Insert the bottom of the new flange into the blower housing.



Once your flange is tightly secured, your backpack fogger is now ready to use!



We hope this guide helped you get the most out of your backpack sprayer. Check back in to Tomahawk's comprehensive library of manuals, assembly guides, videos, & more to power your world!
