How To Install A New Recoil Starter On A TMD14 Backpack Fogger Mist Blower

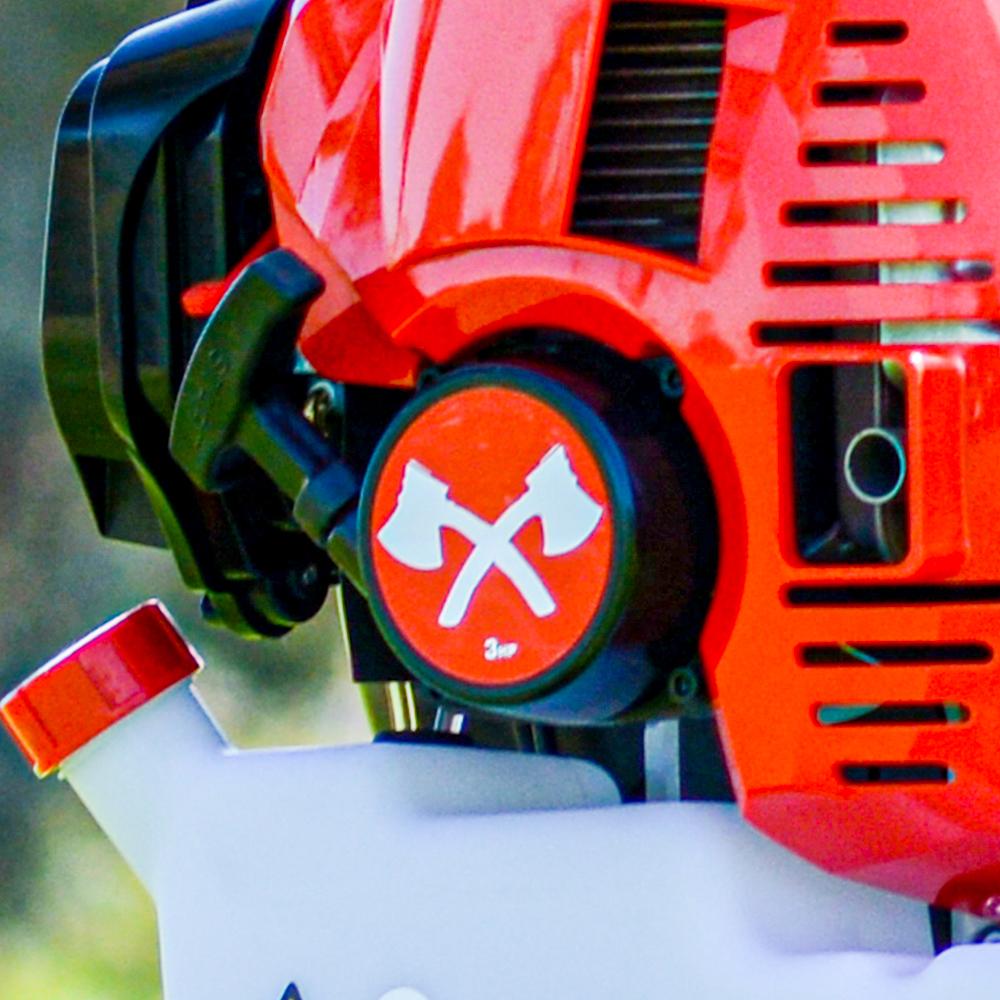

The Tomahawk 3.7 Gallon Turbo Boosted Backpack Mosquito Fogger is powered by our Tomahawk 3HP 2 Stroke Engine. To start up the engine, you will need to pull the recoil starter. The recoil starter sits at the front of your Backpack Fogger, centered between the engine and the fuel tank.

If the recoil cord breaks, gets stuck, or becomes difficult to pull, you will need to replace the recoil starter.



Follow these steps to get your new recoil starter installed and your engine running in no time:



What You Will Need



Instructions

Step 1:

Use a 4.5mm Allen wrench to remove the four bolts from the recoil starter.

Step 2:

Remove old recoil starter from the engine.

Step 3:

Put your new recoil starter in to place on the engine.

Step 4:

Use a 4.5mm Allen wrench to fasten bolts and secure the new recoil starter onto the engine.



Your Backpack Fogger is now ready to use!



We hope this guide helped you get the most out of your backpack sprayer. Check back in to Tomahawk's comprehensive library of manuals, assembly guides, videos, & more to power your world!
