How To Attach A ULV Nozzle Onto A TMD14 Backpack Fogger Mist Blower

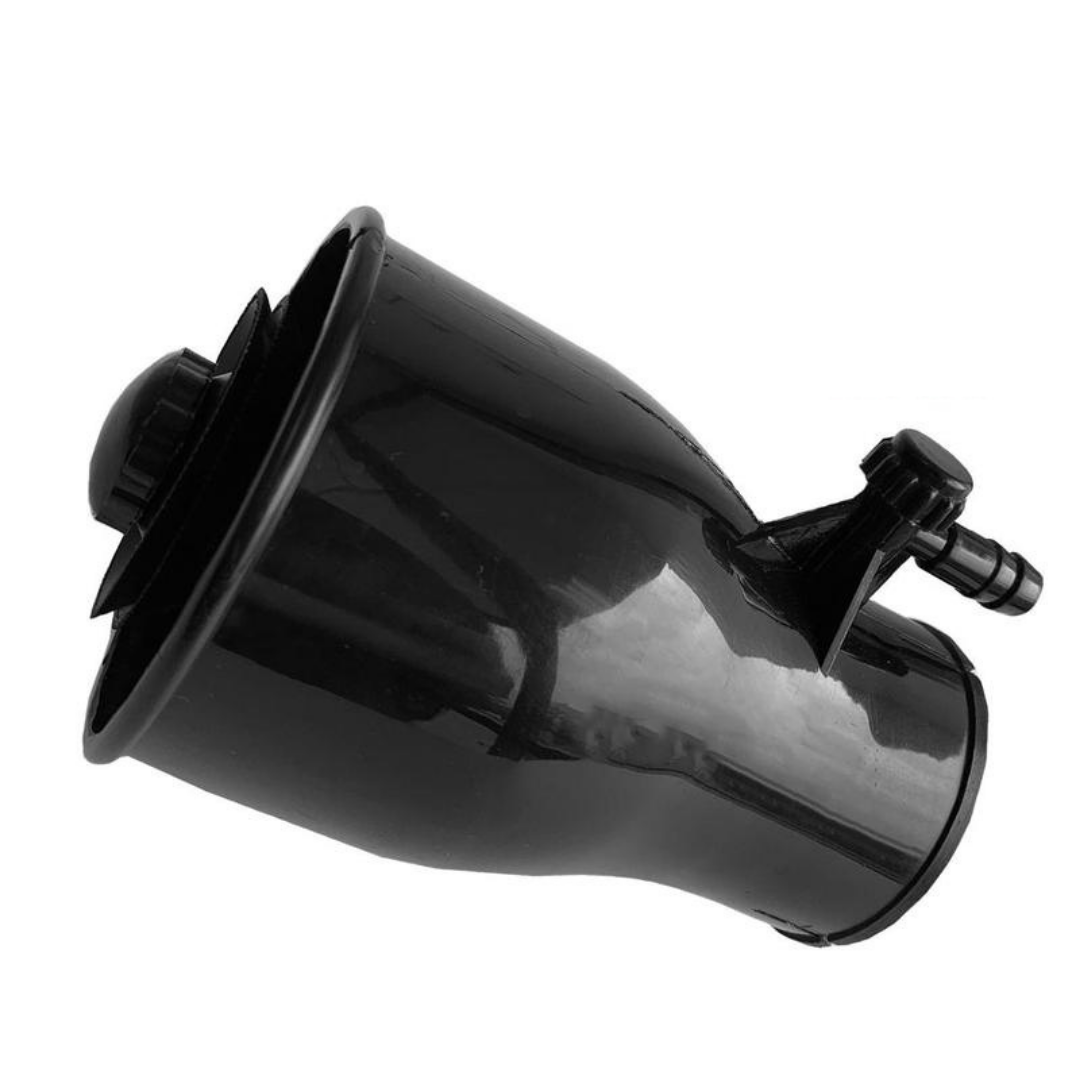

The Tomahawk 3.7 Gallon Turbo Boosted Mosquito Fogger ULV Nozzle offers smaller droplets created by ULV or ultra-low volume that are proven ideal for fighting pathogens and vector carriers, like mosquitoes and ticks, carrying ZIKA, Lyme, and other harmful diseases. The ULV nozzle attaches to the end of the tube, replacing the the original fan nozzle.



Upgrading your pest control with a ULV nozzle? Here's how to install it to your backpack fogger:



What You Will Need

Instructions

Step 1:

Use needle nose plyers to clamp c-clip and remove c-clip off the clear pipe.


Step 2:

Remove clear pipe from nipple.

Step 3:

Remove fan nozzle from tube.

Step 4:

Slide metal band on to the tube.

Step 5:

Attach ULV nozzle to the tube.

Step 6:

Reattach clear pipe to nipple.

Step 7:

Use needle nose plyers to clamp c-clip and move c-clip over clear pipe to secure on to nipple.



Now that you have your brand new ULV Nozzle installed, your upgraded Backpack Fogger is ready to use!



We hope this guide helped you get the most out of your backpack sprayer. Check back in to Tomahawk's comprehensive library of manuals, assembly guides, videos, & more to power your world!
