Pure Muscle That Packs a Punch

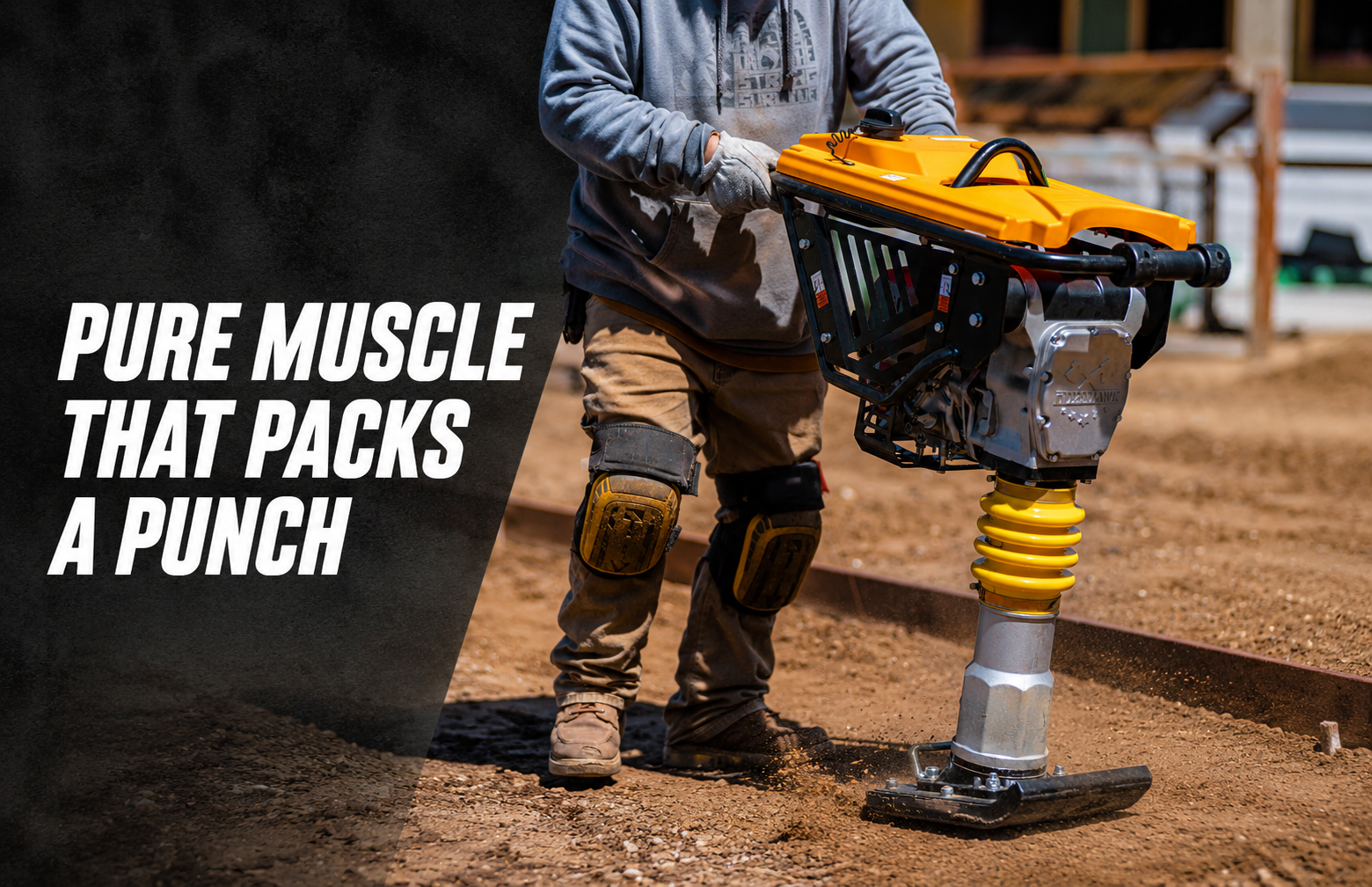

The Tomahawk JX60H Tamping Rammer delivers powerful, controlled compaction for demanding construction applications. Powered by a dependable 3 HP Honda GX100 engine, this professional grade rammer produces up to 3,350 pounds per square foot of compaction force while maintaining a balanced and manageable jumping motion.
Built for contractors, rental fleets, and construction crews, the JX60H combines strong impact performance with durable components, simple transportation, and reliable operation in dusty jobsite conditions.
Why Choose the JX60H?
Dependable Honda Power
The 98cc Honda GX100 four stroke engine provides dependable power with low emissions and reduced operating noise. A robust roll cage and protective side cover help shield the engine and recoil starter from demanding jobsite conditions.
Powerful Compaction Performance
With up to 3,350 pounds per square foot of compaction force, the JX60H is designed for professional applications that require strong, consistent soil density. It can compact cohesive and granular soils to depths of up to 26 inches.
Optional Wheel Kit for Easy Transport
Moving equipment between job sites shouldn't slow your crew down. The optional Tomahawk Wheel Kit makes transporting the JX60H Tamping Rammer fast, easy, and efficient. Designed to reduce lifting and improve mobility, the wheel kit allows operators to quickly roll the rammer across jobsites, into trailers, or between work areas with minimal effort.
Durable German Made Bellow
A German manufactured polyurethane ribbed bellow supports consistent jumping strokes from 1.6 to 3.4 inches. Its durable construction helps extend service life during repeated professional use.
Easier Loading and Transportation
Integrated lifting handles and unloading rollers make the JX60H easier to move between jobs. An optional wheel kit provides added convenience when transporting the rammer across the jobsite.
Key Specifications
| Power | Compaction | Design |
|---|---|---|
| Honda GX100 Engine | 3,350 lbs per sq. ft. | 150 lbs |
| 98cc Engine | 12.8 kN Impact Force | 13 x 10 in. Shoe |
| 3 HP | Up to 26 in. Compaction Depth | Lifting Handles and Rollers |
| 2.8 L Fuel Tank | 1.6 to 3.4 in. Jumping Stroke | CARB and EPA Certified |
| Cohesive and Granular Soils |
Ideal Applications
- Trench and pipeline compaction
- Foundation and footing preparation
- Backfill compaction
- Road and pavement repair
- Utility installation
- Confined areas where larger compactors cannot operate
- Field density and nuclear density testing applications
Warranty Protection
The Tomahawk JX60H is backed by a 2 year product warranty and a 3 year engine warranty, giving contractors and equipment suppliers added confidence in long term performance.
